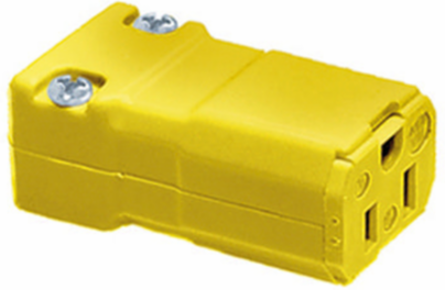

Hubbell Wiring Device-Kellems HBL5969VY Female Connector Body, 15A 125V, 2-Pole 3-Wire Grounding, Yellow
- MPN: HBL5969VY
- UPC: 783585013107
- PPN: HBL-HBL5969VY
- UNSPSC: 39121421
CAD
$17.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 125V, 5-15R, Yellow, Single Pack.
Features
- Hinged one piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
Documentation & Downloads
Specifications
Additional
| Amperage | 15 A |
|---|---|
| Horsepower Rating | 0.5 HP |
| Number of Wires | 3-Wire |
| Dielectric Strength | 2000 V |
| Length | 2.68 in |
| Height | 2.68 in |
| Material | Nylon |
| Connectivity | Screw Terminals |
| NEMA Rating | 5-15R |
| Wire Size Range | #18 AWG to #12 AWG |
| Color | Yellow |
| Voltage | 125 VAC |
|---|---|
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Size | 2.68 in x 1.32 in x 2.68 in |
| Width | 1.32 in |
| Weight | 0.1 lb |
| Material - Mounting Hardware | Cord Mounted |
| Operating Temperature | -40 C to 75 C |
| Compliance | CSA C22.2 No. 42; UL498; RoHS Compliant |
| Cord Range | 0.230 in to 0.720 in |
| Country of Origin | CN |
