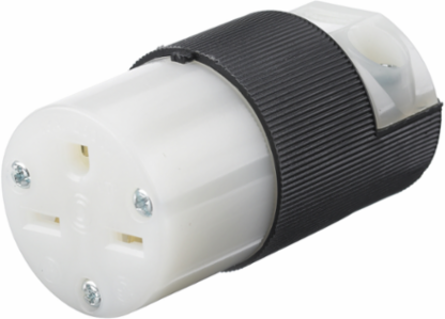

Hubbell Wiring Device-Kellems HBL5669C Insulgrip Female Connector Body, 15A 250V, 2-Pole 3-Wire, Black/White
- MPN: HBL5669C
- UPC: 783585175805
- PPN: HBL-HBL5669C
- UNSPSC: 39121421
CAD
$90.46
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 15A 250V, 6-15R, Black and White, Single Pack.
Features
- Individual wiring terminals completely enclosed
- Powerful, offsetting cord grips clamp on individual conductors
- Fast lead assembly screws
- Beveled housing prevents snagging
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL5669C AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Country of Origin
- United States
- Dimensions
- 2.78 in x 1.53 in x 1.53 in
- Industry Standard(s)
- CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB or better;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #18-10 AWG copper conductors only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Amperage Rating
- 15 A
- Conductor Range
- #14 AWG to #12 AWG
- Insulation
- Insulated Body
- Number of Conductors
- 3-Wire Grounding
- Size
- 2.78 in x 1.53 in x 1.53 in
- Standard
- CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
- Type
- Connector Body
- Voltage Rating Description
- 250 V
- Width
- 1.53 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- 6-15R
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wattage
- 3750 W
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5669
- Cord Range
- 0.230"-0.720" (5.8-18.3)
- Current Rating
- 15 A
- Series
- Insulgrip®
- BOX SIZE
- 3.600x9.900x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585175805
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585175804
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextIndustrial Solutions
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Current / Amperage Rating15 A
Height1.53 in
Length2.78 in
Standards - RoHS Compliance StatusCM
ApplicationIndustrial/Commercial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA Rating6-15R
Number of Poles2-Pole
Special FeaturesStandard Product
Temperature RatingMax Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage Rating250 V
Weight0.15 lb.
ConnectivityScrew Terminals
Display SizeStandard
Number Of Conductors3-Wire Grounding
Number Of Wires3-Wire
StyleStandard
Wire Size#18 AWG to #10 AWG
Description - InvoiceCONN, 15A 250V, 6-15R, B/W
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA04A010
Material - Mounting HardwareCord Mounted
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.95 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight11.442 lb.
Lowest Level UOMEach
Pallet Height39.600 in
Pallet Weight906.000 lb.
NAICS Code335931A102
