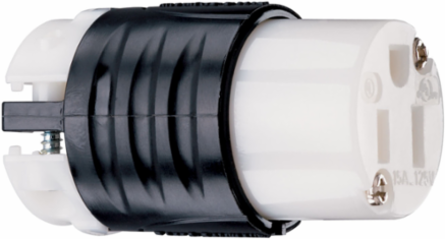

Pass & Seymour PS5269X 15A 125V Extra-Hard Use Spec-Grade Connector, Black, 2.638 Inch Length
- MPN: PS5269X
- UPC: 785007237306
- PPN: P-S-PS5269X
CAD
$17.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15A 125V Extra-Hard Use Spec-Grade Connector, Black, 2.638 Inch Length
Features
- Unit arrives completely ready-to-wire, cuts installation time significantly.
- Nylon housing provides impact and chemical resistance.
- Rugged two-piece cord grip provides more uniform cord retention.
- Internal dust shield keeps terminals free of contaminants.
- Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
- All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
- Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
- Cord-grip screws recessed to protect installer against screwdriver head slippage.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15A
- Operating Temperature
- -40°C to +75°C
- Dielectric Withstand Voltage
- 1500V minimum
- Length
- 2.638 in
- Material
- Nylon, Brass
- Wire Terminals
- 3-wire, same plane
- Flammability
- UL94 V2
- Color
- Black
- Product Line
- Pass & Seymour
Voltage125V
Temperature Rise30°C max at 150% rated current
Maximum Working Voltage250V
Width1.516 in
Cord Diameter Range.230" - .690"
Terminal Accommodation#18 AWG - #10 AWG
ComplianceUL Listed, CSA Certified, NEMA WD-1
Country of OriginMexico
