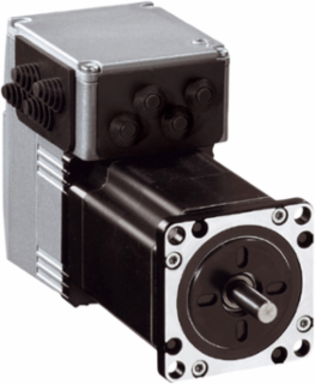

Schneider Electric ILS2T572PB1A0 Integrated Drive with Stepper Motor, 3.5 A, 24-48 V, 57 mm Flange

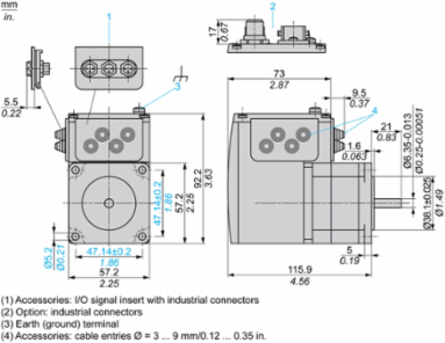

This product is part of the Lexium ILA, ILE, ILS range, an offer of motion integrated drives for motion control. The integrated motion drive with a 6-pole stepper motor features an integrated Modbus TCP communication interface. It is equipped with a single turn encoder (16384 points/turn) and reference pulse sensor (zero marker). Integration of the motor and the control electronics reduces the installation costs. The 3-phase stepper motor with a rated supply voltage of 24V to 48V DC, a maximum current consumption of 3500mA and a nominal speed of 1000RPM at 48V. It provides high speed of rotation and medium torque with untapped shaft end. It is furnished with printed circuit board connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. Its dimensions are 115.9mm (Length) x 57mm (Width), 6.35mm x 21mm shaft, centring collar dimensions are 1.6mm (Depth) x 38.1mm (Diameter) with 66.6mm circle diameter of the mounting hole. It weighs 1.6kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CE, TUV, CUL and UL. It meets EN/IEC 61800-3, EN 61800-3, 2001, second environment, IEC 60072-1, EN/IEC 50178, EN 61800-3, 2001-02, IEC 61800-3, Ed 2 and EN 50347 standards. It supports 57mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, fieldbus and safety function in a single device. Each motor technology offers a wide range of applications for decentralised motion solutions. The following operating modes can be set via the communication bus such as electronic gearbox (for drive ILA1x57 with single turn encoder), speed profile, manual (JOG), point-to-point and homing.
