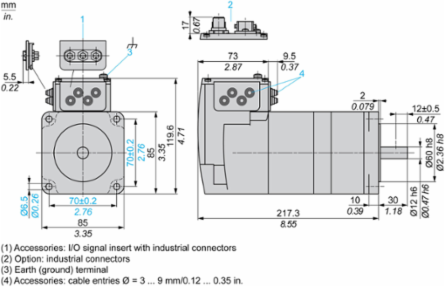

Schneider Electric ILS1F852PC1F0 Integrated Drive with Stepper Motor, 5 A, 24-36 V, IP54
Schneider Electric ILS1F852PC1F0 Integrated Drive with Stepper Motor, 5 A, 24-36 V, IP54
- MPN: ILS1F852PC1F0
- PPN: SCH-ILS1F852PC1F0
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3072.82/ EA
Description
The Integrated Drive with Stepper Motor from Schneider Electric is engineered to provide precision control in automation and motion applications. Featuring a robust 5 A current rating and compatible with a voltage range of 24-36 V, this drive is designed for reliable performance while maintaining an IP54 rating for protection against dust and moisture. It seamlessly integrates into various systems, enhancing operational efficiency and simplifying the control of stepper motors. Whether for industrial automation or sophisticated motion control tasks, this product embodies the quality and innovation that Schneider Electric is known for.
Specifications
- Voltage
- 18-40 V
- Nominal Speed
- 100 rpm at 24 V, 200 rpm at 36 V
- Holding Torque
- 6 N.m with holding brake, 4 N.m without
- Continuous Stall Torque
- 4 N.m
- Maximum Radial Force
- 100 N
- Gear Box Type
- without
- Number of Motor Poles
- 6
- Winding Type
- medium speed of rotation and medium torque
- Mounting Support
- flange
- Number of Motor Stacks
- 2
- Centring Collar Depth
- 2 mm (0.08 in)
- Mounting Holes Diameter
- 6.5 mm (0.26 in)
- Shaft Diameter
- 12 mm (0.47 in)
- Shaft End
- untapped
- Feedback Type
- index pulse
- Protection Type
- safe torque off, short circuit of the output voltage, overload of output voltage
- Speed Feedback Resolution
- 20000 points/turn
- Service Life
- 20000 hours (bearing)
- Brake Release Time
- 40 ms
- Type of Cooling
- natural convection
- Ambient Air Temperature for Operation
- 0 to 50 °C without derating, 50 to 65 °C with derating
- Ambient Air Temperature for Storage
- -25 to 70 °C
- Relative Humidity
- 15 to 85 % without condensation
- Shock Resistance
- 150 m/s², 1000 shocks IEC 60068-2-29
- Product Certifications
- TÜV, cUL, UL
- China RoHS Regulation
- Compliant
- EU RoHS Directive
- Pro-active compliance (product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Net Weight
- 5.4 kg (11.9 lb)
Current Consumption5000 mA maximum
Nominal Torque4 N.m
Peak Stall Torque4 N.m
Maximum Mechanical Speed1500 rpm
Maximum Axial Force170 N tensile, 30 N pressure
Motor Type3-phase stepper motor
Network Number of Phasessingle phase
Transmission Rate50, 100, 125, 250, 500, 800, 1000 kbauds
Motor Flange Size85 mm (3.35 in)
Centring Collar Diameter60 mm (2.36 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes99 mm (3.90 in)
Shaft Length30 mm (1.18 in)
Electrical Connectionindustrial connector
Input/Output Type4 signals (each usable as input or output)
Accuracy Error+/- 6 arc min
Rotor Inertia2.4 kg.cm²
Brake Pull-in Power22 W
Brake Application Time20 ms
IP Degree of ProtectionIP41 shaft bushing, IP54 total except shaft bushing
Permissible Ambient Air Temperature Around Device105 °C power amplifier, 110 °C motor
Operating Altitudeup to 1000 m without derating
Vibration Resistance20 m/s², 10-500 Hz, 10 cycles IEC 60068-2-6
MarkingCE
StandardsIEC 61800-3, IEC 60072-1, IEC 50178, IEC 50347, EN 61800-3
RoHS Exemption InformationYes
Reach RegulationContains SVHC above threshold
Environmental DisclosureENVPEP1411002EN
