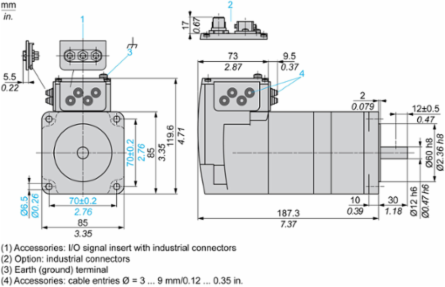

Schneider Electric ILS1F851PB1F0 Integrated Drive with Stepper Motor, 24-36 V, 5 A, 85 mm Flange
Schneider Electric ILS1F851PB1F0 Integrated Drive with Stepper Motor, 24-36 V, 5 A, 85 mm Flange
- MPN: ILS1F851PB1F0
- PPN: SCH-ILS1F851PB1F0
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2646.77/ EA
Description
Schneider Electric's integrated drive system pairs seamlessly with a stepper motor to offer exceptional performance in industrial automation and motion control applications. Operating within a voltage range of 24-36 V and delivering up to 5 A, this drive is designed to manage complex movement needs with precision. Featuring an 85 mm flange size, it integrates compactly into your existing framework, making it a versatile choice for enhancing your operational efficiency. The reliable engineering of this drive ensures consistent performance, making it an essential component for modern automated systems.
Specifications
- Voltage
- 24 V, 36 V
- Nominal Torque
- 2 N.m
- Peak Stall Torque
- 2 N.m
- Current Consumption
- 5000 mA maximum
- Associated Fuse Rating
- 10 A
- Number of Motor Poles
- 6
- Winding Type
- Medium speed rotation, medium torque
- Holding Brake
- With
- Input/Output Type
- 4 signals (each can be input or output)
- Voltage State 1 Guaranteed
- 15 to 30 V
- Discrete Output Voltage
- 23 to 25 V
- Speed Feedback Resolution
- 20000 points/turn
- Rotor Inertia
- 1.3 kg.cm²
- Maximum Radial Force
- 100 N
- Service Life
- 20000 hours (bearing)
- Brake Release Time
- 40 ms
- Type of Cooling
- Natural convection
- Motor Flange Size
- 85 mm
- Shaft Diameter
- 12 mm
- Centring Collar Depth
- 2 mm
- Mounting Holes Diameter
- 6.5 mm
- Mounting Support
- Flange 85 mm
- Communication Interface
- Integrated CANopen DS301
- Number of Motor Stacks
- 1
- Feedback Type
- Index pulse
- Second Shaft
- Without second shaft end
- Network Number of Phases
- Single phase
- China RoHS Regulation
- Compliant (X)
- PVC Free
- Yes
- Marking
- CE
- Standards
- IEC 61800-3, IEC 60072-1, IEC 50347, IEC 50178
- Ambient Temperature Operation
- 0-50 °C without derating, 50-65 °C with derating
- Operating Altitude
- <= 1000 m without derating
- Vibration Resistance
- 20 m/s² (10-500 Hz, 10 cycles IEC 60068-2-6)
- IP Degree of Protection
- IP41 shaft bushing, IP54 total except shaft bushing (IEC 60034-5)
Nominal Speed200 rpm (24 V), 400 rpm (36 V)
Holding Torque6 N.m with holding brake
Continuous Stall Torque2 N.m
Maximum Switching Current100 mA per output, 200 mA total
Motor Type3-phase stepper motor
PhaseSingle phase
Electrical ConnectionPrinted circuit board connector
Gear Box TypeWithout
Voltage State 0 Guaranteed-3 to 4.5 V
Discrete Input Current10 mA (STO_A), 3 mA (STO_B), 2 mA (signal interface) at 24 V
Protection TypeSafe torque off, overload and short circuit protection
Accuracy Error+/- 6 arc min
Maximum Mechanical Speed2000 rpm
Maximum Axial Force170 N tensile, 30 N pressure
Brake Pull-in Power22 W
Brake Application Time20 ms
Length187.3 mm (7.37 in)
Shaft Length30 mm
Centring Collar Diameter60 mm
Circle Diameter of Mounting Holes99 mm
Number of Mounting Holes4
Net Weight4.4 kg (9.7 lb)
Network TypeDC
Device Short NameILS
Range of ProductLexium integrated drive
Shaft EndUntapped
Transmission Rate50, 100, 125, 250, 500, 800, 1000 kbauds
RoHS ComplianceYes
Mercury FreeYes
Product CertificationsUL, TÜV, cUL
Permissible Ambient Temperature105 °C (power amplifier), 110 °C (motor)
Ambient Temperature Storage-25 to 70 °C
Relative Humidity15-85% without condensation
Shock Resistance150 m/s² (1000 shocks IEC 60068-2-29)
