Schneider Electric ILS1F852PB1F0 integrated drive ILS with stepper motor - 24..36 V - CANopen DS301 - 5 A
Schneider Electric ILS1F852PB1F0 integrated drive ILS with stepper motor - 24..36 V - CANopen DS301 - 5 A
- MPN: ILS1F852PB1F0
- PPN: SCH-ILS1F852PB1F0
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2813.66/ EA

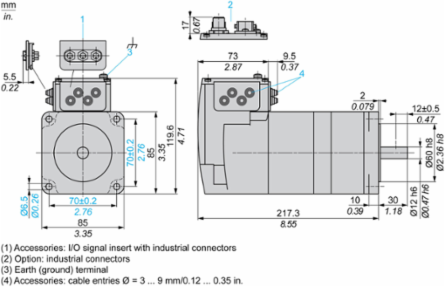

Description
integrated drive ILS with stepper motor - 24..36 V - CANopen DS301 - 5 A
Specifications
Environment
- Product Certifications
- UL || TÜV || cUL
- Ambient Air Temperature For Operation
- 50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
- Vibration Resistance
- 20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP41 shaft bushing: conforming to EN/IEC 60034-5 || IP54 total except shaft bushing: conforming to EN/IEC 60034-5
StandardsEN 61800-3 : 2001-02 || EN/IEC 61800-3 || EN/IEC 50178 || EN 50347 || IEC 60072-1 || IEC 61800-3, Ed 2 || EN 61800-3:2001, second environment
Shock Resistance150 m/s² 1000 shocks EN/IEC 60068-2-29
Permissible Ambient Air Temperature Around The Device105 °C power amplifier || 110 °C motor
Relative Humidity15-85 % without condensation
Operating Altitude<= 1000 m without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1411002EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1411002EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Circle Diameter Of The Mounting Holes
- 99 mm
- Maximum Mechanical Speed
- 1500 rpm
- Maximum Radial Force Fr
- 100 N
- Number Of Motor Stacks
- 2
- Continuous Stall Torque
- 4 N.m
- Discrete Input Current
- 10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
- Marking
- CE
- Brake Pull-In Power
- 22 W
- Voltage State 0 Guaranteed
- -3...4.5 V
- Motor Flange Size
- 85 mm
- Peak Stall Torque
- 4 N.m
- Shaft Diameter
- 12 mm
- Supply Voltage Limits
- 18-40 V
- Speed Feedback Resolution
- 20000 points/turn
- Service Life In Hours
- 20000 h bearing
- Feedback Type
- index pulse
- Transmission Rate
- 50, 100, 125, 250, 500, 800 and 1000 kbauds
- Brake Application Time
- 20 ms
- Maximum Axial Force Fa
- 170 N tensile force) || 30 N force pressure)
- Voltage State 1 Guaranteed
- 15...30 V
Current Consumption5000 mA maximum
Maximum Switching Current100 mA per output || 200 mA total
Mounting Supportflange
Rotor Inertia2.4 kg.cm²
Centring Collar Depth2 mm
Second Shaftwithout second shaft end
Shaft Length30 mm
Net Weight5.4 kg
Centring Collar Diameter60 mm
Brake Release Time40 ms
Number Of Mounting Holes4
Discrete Output Voltage23...25 V
Mounting Holes Diameter6.5 mm
Type Of Coolingnatural convection
Shaft Enduntapped
Protection Typeshort circuit of the output voltage || safe torque off || overload of output voltage
Accuracy Error+/- 6 arc min
Input/Output Type4 signals (each be used as input or output)
Associated Fuse Rating10 A
Specifications
- Range Of Product
- Lexium integrated drive
- Network Type
- DC
- Number Of Motor Poles
- 6
- Product Or Component Type
- motion integrated drive
- Length
- 217.3 mm
- Communication Interface
- CANopen DS301, integrated
- Motor Type
- 3-phase stepper motor
- Electrical Connection
- printed circuit board connector
- Device Short Name
- ILS
Holding Torque6 N.m holding brake || 4 N.m
Winding Typemedium speed of rotation and medium torque
Holding Brakewith
Network Number Of Phasessingle phase
[Us] Rated Supply Voltage36 V || 24 V
Gear Box Typewithout
Nominal Speed100 rpm 24 V || 200 rpm 36 V
Nominal Torque4 N.m
