Schneider Electric ILS2E851PC1F0 Lexium ILS Integrated Drive with 3-Phase Stepper Motor, 5000 mA, 24-48 V
Schneider Electric ILS2E851PC1F0 Lexium ILS Integrated Drive with 3-Phase Stepper Motor, 5000 mA, 24-48 V
- MPN: ILS2E851PC1F0
- PPN: SCH-ILS2E851PC1F0
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3500.69/ EA
Description

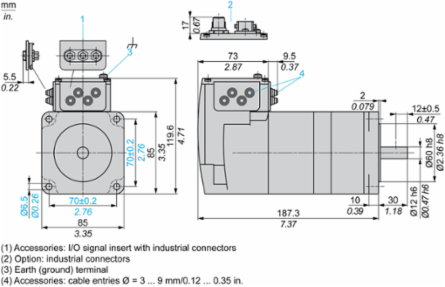

This product is part of the Lexium ILS range, an offer of integrated motion drives for motion control. The integrated motion drive with a 6-pole stepper motor features an integrated EtherCAT communication interface. The 3-phase stepper motor with a rated supply voltage of 24V, 48V DC, a maximum current consumption of 5000mA and a nominal speed of 600RPM at 48V and 300RPM at 24V. It offers medium speed of rotation and medium torque with untapped shaft end. It is furnished with industrial connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. The length of this product is 187.3mm and the centering collar dimensions are 2mm (depth) x 60mm (diameter). It weighs 4.4kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CUL, TUV and UL. It meets EN 61800-3 2001, IEC 60072-1, EN/IEC 61800-3, EN 61800-3 2001-02, EN 50347 and EN/IEC 50178 standards. It supports 85mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, Fieldbus and safety function in a single device. Integrated drives for motion control with stepper, servo or brushless DC motor.
Specifications
Environment
- Product Certifications
- cUL || TÜV || UL
- Ambient Air Temperature For Operation
- 40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
- Vibration Resistance
- 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP41 shaft bushing: conforming to IEC 60034-5 || IP54 total except shaft bushing: conforming to IEC 60034-5
StandardsEN 61800-3:2001, second environment || IEC 61800-3, Ed 2 || IEC 60072-1 || IEC 61800-3 || EN 61800-3 : 2001-02 || IEC 50347 || IEC 50178
Shock Resistance150 m/s² 1000 shocks IEC 60068-2-29
Permissible Ambient Air Temperature Around The Device105 °C power amplifier || 110 °C motor
Relative Humidity15-85 % without condensation
Operating Altitude<= 1000 m without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1411002EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1411002EN
Complementary
- Circle Diameter Of The Mounting Holes
- 99 mm
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Switching Current
- 100 mA per output || 200 mA total
- Mounting Support
- flange
- Rotor Inertia
- 1.3 kg.cm²
- Centring Collar Depth
- 2 mm
- Second Shaft
- without second shaft end
- Shaft Length
- 30 mm
- Net Weight
- 4.4 kg
- Centring Collar Diameter
- 60 mm
- Brake Release Time
- 40 ms
- Number Of Mounting Holes
- 4
- Discrete Output Voltage
- 23...25 V
- Mounting Holes Diameter
- 6.5 mm
- Type Of Cooling
- natural convection
- Shaft End
- untapped
- Protection Type
- overload of output voltage || safe torque off || short circuit of the output voltage
- Accuracy Error
- +/- 6 arc min
- Input/Output Type
- 4 signals (each be used as input or output)
- Associated Fuse Rating
- 16 A
Current Consumption5000 mA maximum continuous
Commissioning InterfaceRS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Maximum Radial Force Fr100 N
Number Of Motor Stacks1
Continuous Stall Torque2 N.m
Discrete Input Current10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface
MarkingCE
Brake Pull-In Power22 W
Voltage State 0 Guaranteed-3...4.5 V
Motor Flange Size85 mm
Peak Stall Torque2 N.m
Shaft Diameter12 mm
Supply Voltage Limits18-55 V
Speed Feedback Resolution20000 points/turn
Service Life In Hours20000 h bearing
Feedback Typeindex pulse
Transmission Rate100 Mbits
Brake Application Time20 ms
Maximum Axial Force Fa170 N tensile force) || 30 N force pressure)
Voltage State 1 Guaranteed15...30 V
Specifications
- Range Of Product
- Lexium integrated drive
- Network Type
- DC
- Number Of Motor Poles
- 6
- Product Or Component Type
- motion integrated drive
- Length
- 187.3 mm
- Communication Interface
- EtherCAT, integrated
- Motor Type
- 3-phase stepper motor
- Electrical Connection
- industrial connector
- Device Short Name
- ILS
Holding Torque6 N.m holding brake || 2 N.m
Winding Typemedium speed of rotation and medium torque
Holding Brakewith
Network Number Of Phasessingle phase
[Us] Rated Supply Voltage24 V || 48 V
Gear Box Typewithout
Nominal Speed300 rpm 24 V || 600 rpm 48 V
Nominal Torque2 N.m
