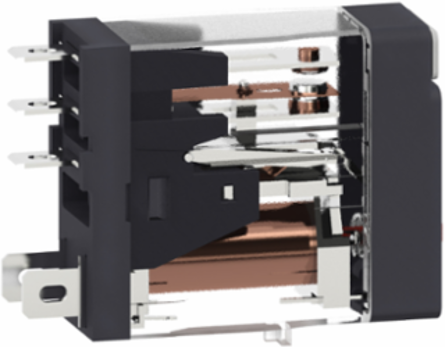

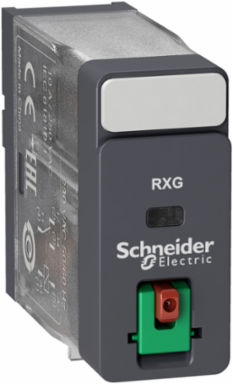

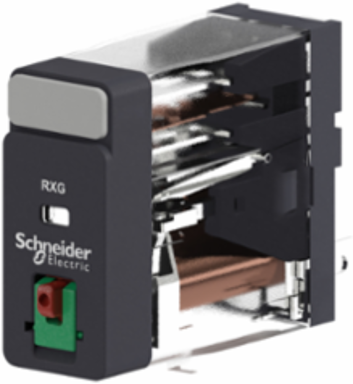

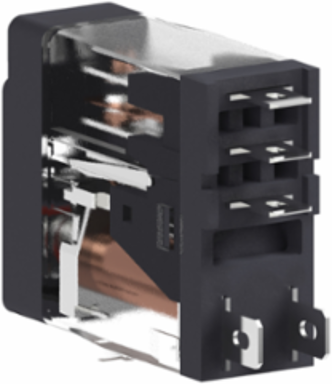

Schneider Electric RXG11F7 Harmony Electromechanical Relay, 10A, 120V AC, Lockable Test Button
- MPN: RXG11F7
- PPN: SCH-RXG11F7
CAD
$16.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony RXG plug-in relay socket has a coil control voltage of 120V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- interface relay
- Local Signalling
- flag
- [Ithe] Conventional Enclosed Thermal Current
- 10 A -40-55 °C
Product Or Component Typeplug-in relay
Contacts Type And Composition1 C/O
Device Short NameRXG
Complementary
- Utilisation Coefficient
- 20 %
- Safety Reliability Data
- B10d = 100000
- Average Consumption
- 0.82 VA 60 Hz
- Operating Rate
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Protection Category
- RT I
- Contacts Material
- silver alloy (AgSnO2In2O3)
- Shock Resistance
- 20 gn in operation || 100 gn not in operation
- Status Led
- without
- Colour Of Cover
- standard
- Control Type
- lockable test button
- [Ie] Rated Operational Current
- 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
- Electrical Durability
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Resistance
- 6300 Ohm +/- 10 %
- Mounting Position
- any position
- Load Current
- 10 A 250 V AC
- Minimum Switching Capacity
- 500 mW 100 mA, 5 V DC
Maximum Switching Capacity2500 VA
[Uc] Control Circuit Voltage120 V AC 50/60 Hz
Insulation Resistance1000 MOhm 500 V DC
Torque Value0.8 N.m
Test Levelslevel A group mounting
Pollution Degree2
Dielectric Strength1000 V AC between contacts micro disconnection || 5000 V AC between coil and contact reinforced insulation
Net Weight0.02 kg
Maximum Switching Voltage250 V AC || 30 V DC
Device Presentationcomplete product
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Mechanical Durability10000000 cycles
Control Circuit Voltage Limits0.8...1.1 Uc AC
Overvoltage CategoryIII
Drop-Out Voltage Threshold>= 0.3 Uc AC
Environment
- Product Certifications
- CSA || EAC || UL || CE || DNV-GL
- Standards
- IEC 61810-1 || UL 508 || CSA C22.2 No 14
- Relative Humidity
- 10-85 %
- Ip Degree Of Protection
- IP40
Ambient Air Temperature For Operation-40-70 °C
Vibration Resistance3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406006EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
