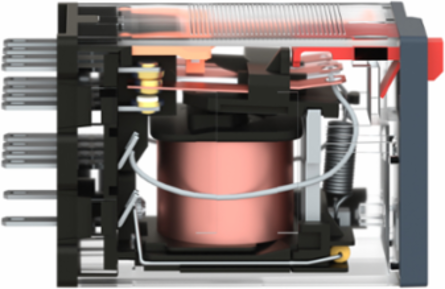

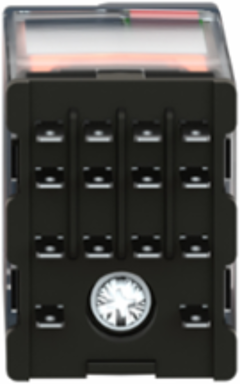

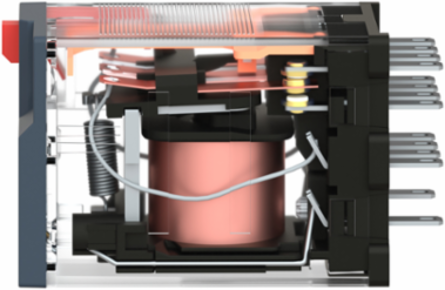

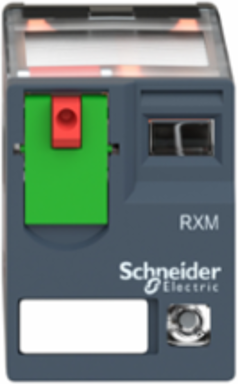

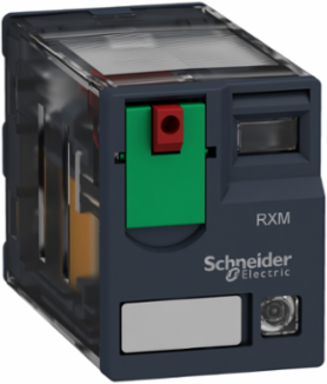

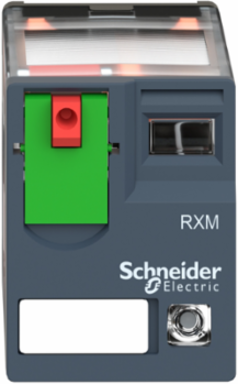

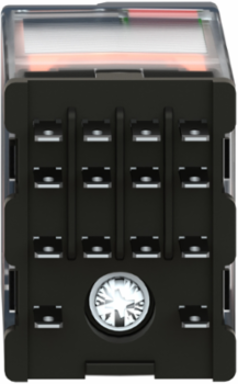

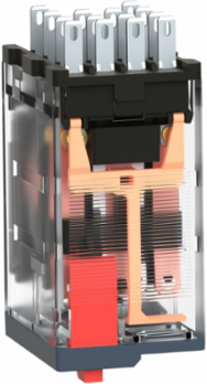

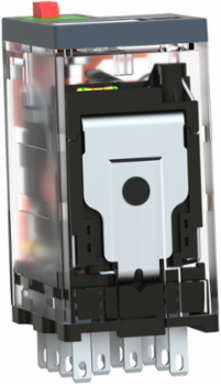

Schneider Electric RXM4AB2P7 Miniature Plug-In Relay 4 C/O, 6A, 230V AC, Lockable Test Button, LED

  • MPN: RXM4AB2P7
  • PPN: SCH-RXM4AB2P7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $19.86

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Miniature Plug-In Relay 4 C/O, 6A, 230V AC, Lockable Test Button, LED

    Features

    • Specifically wound for a 230V AC input, this relay integrates seamlessly into standard European and global industrial power grids. By matching your control voltage precisely, you ensure reliable coil actuation and long-term mechanical durability, preventing the overheating or chatter often caused by voltage mismatches in sensitive control panels.
    • his model includes both a high-visibility LED and a mechanical status indicator to provide instant visual confirmation of the relay's state. This dual-diagnostic feature allows maintenance technicians to troubleshoot control loops at a glance, even in poorly lit environments, significantly reducing the time required to identify failed components or logic errors.
    • Each of the four contacts is rated for a 6A resistive load, making it an ideal "interface" relay for driving larger contactors, solenoid valves, or signaling lamps. The silver alloy contacts are engineered for high-cycle reliability, ensuring that your automated production lines or HVAC controls maintain consistent uptime under demanding industrial conditions.
    • Equipped with a manual "push-to-test" button, this relay allows you to manually override the coil to check circuit continuity and downstream device operation during commissioning. The button can be locked in the "on" position for extended testing, giving panel builders and electricians a safe, convenient way to verify wiring before the system goes fully live.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, Chile, China, France, United Kingdom, Indonesia, Mexico, Singapore, United States

    Physical Attributes

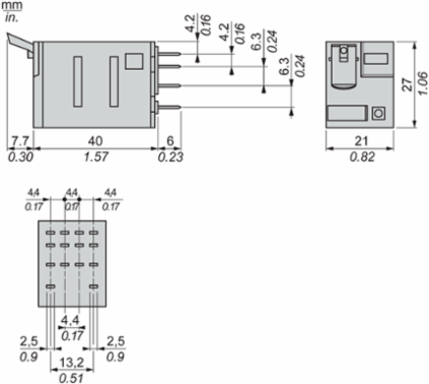

    Cad Overall Depth80.35 mm
    Cad Overall Height82.8 mm

    Complementary Attributes

    Control Circuit TypeAC
    Maximum Switching Capacity1500 VA/168 W
    Minimum Switching Capacity170 mW 10 mA, 17 V
    Line Rated Current6 A
    Maximum Switching Voltage250 V IEC
    Rated Operational Voltage Limits184...253 V AC

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Dielectric Strength1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation
    Status Ledwith, with
    Certificate AgencyUL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
    [Ui] Rated Insulation Voltage250 V IEC300 V CSA, 300 V UL
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0053208, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.32182
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2106019EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Coil Consumption In Va1.2-1.2 60 Hz
    Average Resistance15000 Ohm 20 °C +/- 15 %
    Contacts MaterialAgNi
    Control Typelockable test button
    Load Current6 A 250 V AC6 A 28 V DC
    Operating Positionany position
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection CategoryRT I
    Relay Typeminiature relay
    ReturnabilityYes
    Series NameRXM series
    Shock Resistance10 gnin operation30 gnnot operating
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint17 kg CO2 eq.
    Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    Pep CodeENVPEP2106019EN
    Pep Verification Date2023-11-27
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    [Ie] Rated Operational Current6 A 250 V AC) NO IEC3 A 28 V DC) NC IEC3 A 250 V AC) NC IEC6 A 28 V DC) NO IEC6 A 277 V AC) UL8 A 30 V DC) UL
    [Uimp] Rated Impulse Withstand Voltage2.5 kV 1.2/50 µs
    Nbr. Of Units In Pkg.1
    Take-backNo
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]16.983
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]206.77
    Water Use (M3 Eq) Operational Energy Use [B6]837.25
    Customs Code8536490075
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Operating Rate<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
    Contacts Composition4 C/O
    [Uc] Control Circuit VoltageAC 50/60 Hz, 230 V
    Carbon Footprint Of The Distribution Phase [A4]0.0052481, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.00024874
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]17 kg CO2 eq., 16.983
    Local Publishable Date2026-03-26
    Stocking FlagN
    Use Carbon Footprint16.983
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Consumption1.2 VA 60 Hz
    Compatibility CodeRXM
    Contacts Type And Composition4 C/O
    Electrical Durability100000 cycles resistive
    Mechanical Durability10000000 cycles
    Operating Time20 ms
    Product Or Component Typeplug-in relay
    Range Of ProductHarmony Electromechanical Relays
    Reset Time20 ms
    Safety Reliability DataB10d = 100000
    Shape Of Pinflat (faston type)
    Software Versionv5.9.1
    Test Levelslevel A group mounting
    Utilisation Coefficient20 %
    Control Circuit Voltage230 V
    Database Version2016-11
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionRXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
    Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
    Recyclability Potential In %55
    [Ithe] Conventional Enclosed Thermal Current6 A
    Drop-out Voltage Threshold>= 0.15 Uc>= 0.15 Uc
    Package Weight(Lbs)35.000 g
    Warranty (In Months)18
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]3.3907
    Water Use (M3 Eq) Manufacturing [A1-a3]58.608
    Water Use (M3 Eq) End Of Life [C1-c4]0.4451

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Ambient Air Temperature For Operation-40-55 °C-40-55 °C
    Environmental DisclosureENVPEP2106019EN
    Ip Degree Of ProtectionIP40 conforming to IEC 60529
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-11-27
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint17.315637640000002
    Circularity ProfileENVEOLI2106019EN
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2106019EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typeplug-in relay
    Range Of ProductHarmony Electromechanical Relays

    ETIM

    ETIM 8EC001437
    ETIM 9EC001437

    Output Attributes

    Continuous Output Current5 A

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Overview Attributes

    Device Presentationcomplete product
