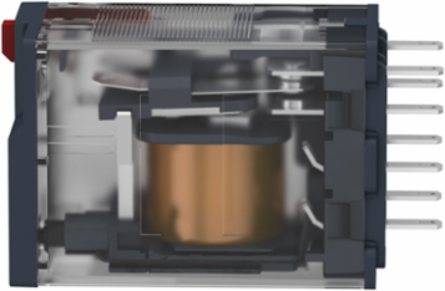

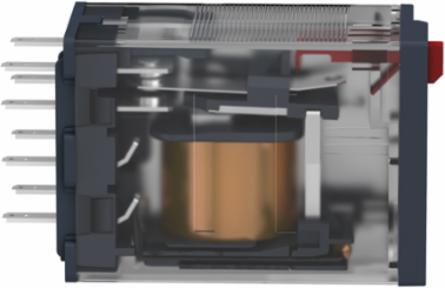

Schneider Electric RXM4AB1U7 Miniature Plug-in Relay, 4 C/O, 6A, 240V AC, Lockable Test Button

  • MPN: RXM4AB1U7
  • PPN: SCH-RXM4AB1U7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $17.86

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

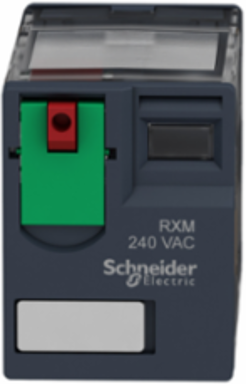

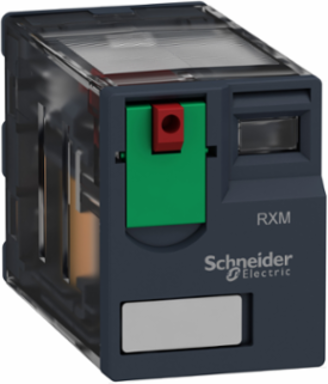

    RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 240 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, China, France, Indonesia

    Physical Attributes

    Cad Overall Depth78.45 mm
    Cad Overall Height79 mm

    Complementary Attributes

    Control Circuit TypeAC
    Maximum Switching Capacity1500 VA/168 W
    Minimum Switching Capacity170 mW 10 mA, 17 V
    Line Rated Current6 A
    Maximum Switching Voltage250 V IEC
    Rated Operational Voltage Limits192...264 V AC

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Dielectric Strength1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation
    Status Ledwithout, without
    Certificate AgencyUL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
    [Ui] Rated Insulation Voltage250 V IEC300 V CSA, 300 V UL
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0048399687, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.2927376966
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Consumption1.2 VA 60 Hz
    Compatibility CodeRXM
    Contacts Type And Composition4 C/O
    Electrical Durability100000 cycles resistive
    Mechanical Durability10000000 cycles
    Operating Time20 ms
    Product Or Component Typeplug-in relay
    Range Of ProductHarmony Electromechanical Relays
    Reset Time20 ms
    Safety Reliability DataB10d = 100000

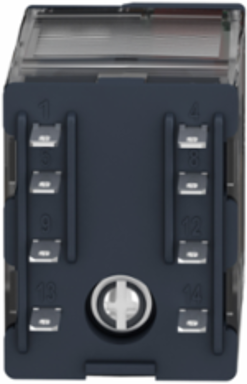

    Shape Of Pinflat (faston type)
    Software VersionEIME v5.9.1
    Test Levelslevel A group mounting
    Utilisation Coefficient20 %
    Control Circuit Voltage240 V
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionRXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: China
    Energy Model - Use [B6]Electricity mix; AC; 120V; US
    Recyclability Potential In %55
    [Ithe] Conventional Enclosed Thermal Current6 A
    Drop-out Voltage Threshold>= 0.15 Uc>= 0.15 Uc
    Package Weight(Lbs)35.000 g
    Warranty (In Months)18
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]223.9872
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Operating Rate<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
    Contacts Composition4 C/O
    [Uc] Control Circuit VoltageAC 50/60 Hz, 240 V
    Carbon Footprint Of The Distribution Phase [A4]0.0047738385, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0002262618
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]18 kg CO2 eq., 17.7011382857
    Local Publishable Date2026-02-26
    Stocking FlagN
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2106019EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Coil Consumption In Va1.2-1.2 60 Hz
    Average Resistance17720 Ohm 20 °C +/- 15 %
    Contacts MaterialAgNi
    Control Typelockable test button
    Load Current6 A 250 V AC6 A 28 V DC
    Operating Positionany position
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection CategoryRT I
    Relay Typeminiature relay
    ReturnabilityYes
    Series NameRXM series
    Shock Resistance10 gnin operation30 gnnot operating
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint18 kg CO2 eq.
    Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    Pep CodeENVPEP2106019EN
    Pep Verification Date2021-12-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity mix; AC; 120V; US
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US
    [Ie] Rated Operational Current6 A 250 V AC) NO IEC3 A 28 V DC) NC IEC3 A 250 V AC) NC IEC6 A 28 V DC) NO IEC6 A 277 V AC) UL8 A 30 V DC) UL
    [Uimp] Rated Impulse Withstand Voltage2.5 kV 1.2/50 µs
    Nbr. Of Units In Pkg.1
    Take-backNo
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]223.9872
    Customs Code8536490075

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Ambient Air Temperature For Operation-40-55 °C-40-55 °C
    Environmental DisclosureENVPEP2106019EN
    Ip Degree Of ProtectionIP40 conforming to IEC 60529
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2021-12-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint18.0037160514
    Circularity ProfileENVEOLI2106019EN
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2106019EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typeplug-in relay
    Range Of ProductHarmony Electromechanical Relays

    ETIM

    ETIM 8EC001437
    ETIM 9EC001437

    Output Attributes

    Continuous Output Current5 A

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Overview Attributes

    Device Presentationcomplete product
    Miniature Plug-in Relay, 4 C/O, 6A, 240V AC, Lockable Test Button
    Miniature Plug-in Relay, 4 C/O, 6A, 240V AC, Lockable Test Button
    Miniature Plug-in Relay, 4 C/O, 6A, 240V AC, Lockable Test Button
    Miniature Plug-in Relay, 4 C/O, 6A, 240V AC, Lockable Test Button
    Miniature Plug-in Relay, 4 C/O, 6A, 240V AC, Lockable Test Button
