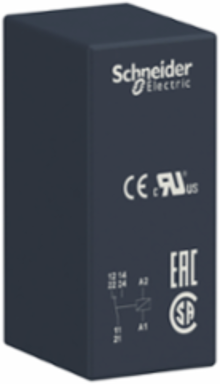

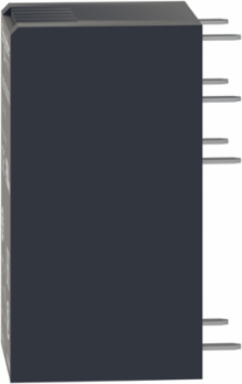

Schneider Electric RSB1A160F7 Harmony Electromechanical Relay, 16A, 1CO, 120V AC, IP40
- MPN: RSB1A160F7
- PPN: SCH-RSB1A160F7
CAD
$16.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This Harmony RSB interfacing plug-in relay has a control coil voltage of 120V AC and has 1 changeover contact single pole double throw with a rating of 16A." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "Plug in type allows easy installation and maintenance." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." 0 0 0 0 0 0 0 0 0 0 0 0
Features
- Engineered with a robust single-pole contact rated for 16A at 250V AC, the RSB1A160F7 is designed to bridge the gap between low-power PLC outputs and heavy-duty industrial actuators. This high current capacity allows you to switch motors, solenoids, and heaters directly, reducing the need for additional contactors and saving valuable DIN rail space in your control panel.
- This relay features a high-efficiency 120V AC coil (50/60Hz), making it natively compatible with standard industrial control circuits without the need for additional power transformers. The low coil power consumption minimizes heat buildup within the enclosure, extending the lifespan of adjacent sensitive electronic components and improving overall system reliability.

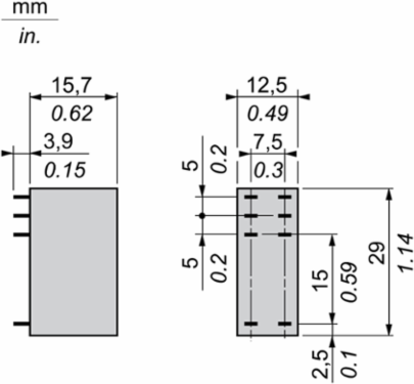

- Measuring only 16mm in width, this Zelio interface relay is specifically designed for high-density installations. The compact footprint allows industrial engineers to fit more I/O points into smaller enclosures, significantly lowering hardware costs while maintaining professional-grade electrical isolation between control and power circuits.
- The RSB series utilizes a plug-in pin configuration compatible with standard screw or spring terminal sockets (like the RSZE1S48M). This "plug-and-play" capability allows for rapid field replacement without disconnecting any wiring, minimizing downtime and simplifying troubleshooting for maintenance teams during critical system failures.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Czechia, United States
Complementary Attributes
- Control Circuit Type
- AC
- Maximum Switching Capacity
- 4000 VA/448 W
- Minimum Switching Capacity
- 120 mW 10 mA, 12 V
- Rated Current
- 16 A
Line Rated Current16 A
Maximum Switching Voltage300 V DC IEC
Minimum Switching Current10 mA
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- without lockable test button, without lockable test button
- Operating Time
- 20 ms operating, 20 ms reset
- Certificate Agency
- EAC, CSA, UL
- Drop-out Voltage Threshold
- >= 0.15 Uc AC, >= 0.15 Uc AC>= 0.15 Uc AC, >= 0.15 Uc AC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.02171058, 0 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.1157654557
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1907
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Coil Consumption
- 0.75 VA AC
- Compatibility Code
- RSB
- Contacts Type And Composition

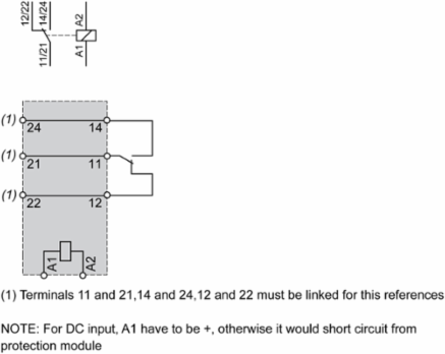

- 1 C/O
- Electrical Durability
- 100000 cycles, 16 A at 250 V, AC-1 NO100000 cycles, 8 A at 250 V, AC-1 NC
- Mechanical Durability
- 10000000 cycles
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Category
- RT I
- Relay Type
- interface relay
- Safety Reliability Data
- B10d = 100000
- Series Name
- RSB series
- Shock Resistance
- 10 gn 11 ms) not operating IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27
- Status Led
- without
- Switching Voltage
- 12 V
- Total Lifecycle Carbon Footprint
- 8 kg CO2 eq.
- Pep Code
- ENVPEP2403026EN
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- [Ie] Rated Operational Current
- 16 A AC-1/DC-1) NO IEC8 A AC-1/DC-1) NC IEC
- [Ue] Rated Operational Voltage
- 96...180 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 3.6 kV IEC 61000-4-5
- Package Weight(Lbs)
- 13.0 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Rate<= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Vibration Resistance+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
[Uc] Control Circuit VoltageAC 50/60 Hz, 120 V
Carbon Footprint Of The Distribution Phase [A4]0.0016999426, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0000835679
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]8 kg CO2 eq., 8.2803020431
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance8360 Ohm AC 20 °C +/- 10 %
Contacts Materialsilver alloy (AgNi)
Dielectric Strength1000 V AC between contacts2500 V AC between poles5000 V AC between coil and contact
Load Current16 A 250 V AC16 A 28 V DC
Operating Positionany position
Product Or Component Typeplug-in relay
Range Of ProductHarmony Electromechanical Relays
ReturnabilityYes
Sale Per Indivisible Quantity10
Shape Of Pinflat (PCB type)
Software Versionv5.9.4
Sustainable PackagingNo
Test Levelslevel A group mounting
Control Circuit Voltage 10120 V AC 50/60 Hz
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe main purpose of the RSB Interface plug-in Relay is having at least 2 C/O contacts for switching by a small control signal controlling a larger load current or voltage. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance.
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential In %75
[Ithe] Conventional Enclosed Thermal Current16 A -40-40 °C
[Ui] Rated Insulation Voltage400 V IEC 60947
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536507000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C AC), -40-70 °C AC)-40-70 °C AC), -40-70 °C AC)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 8.4195615893
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2403026EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2403026EN
Ip Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
Presentation Of Legendwithout
