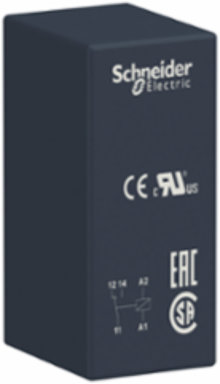

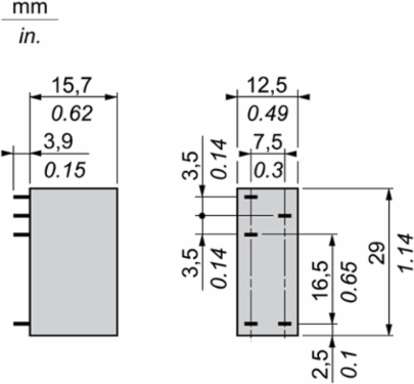

Schneider Electric RSB1A120B7 Harmony 12A Plug-In Relay, 1CO, 24V AC, IP40
- MPN: RSB1A120B7
- PPN: SCH-RSB1A120B7
CAD
$16.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V AC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Austria, Poland, United States |
|---|
Complementary Attributes
| Control Circuit Type | AC |
|---|---|
| Maximum Switching Capacity | 3000 VA/336 W |
| Minimum Switching Capacity | 120 mW 10 mA, 12 V |
| Rated Current | 12 A |
| Line Rated Current | 12 A |
|---|---|
| Maximum Switching Voltage | 300 V DC IEC |
| Minimum Switching Current | 10 mA |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Control Type | without lockable test button, without lockable test button |
| Operating Time | 20 ms operating, 20 ms reset |
| Certificate Agency | EAC, UL, CSA |
| Drop-out Voltage Threshold | >= 0.15 Uc AC, >= 0.15 Uc AC>= 0.15 Uc AC, >= 0.15 Uc AC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.02171058, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.1 kg CO2 eq., 0.1157654557 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Coil Consumption | 0.75 VA AC |
| Compatibility Code | RSB |
| Contacts Type And Composition | 1 C/O |
| Electrical Durability | 100000 cycles, 12 A at 250 V, AC-1 NO100000 cycles, 6 A at 250 V, AC-1 NC |
| Marking | CE |
| Operating Position | any position |
| Product Or Component Type | plug-in relay |
| Range Of Product | Harmony Electromechanical Relays |
| Returnability | Yes |
| Sale Per Indivisible Quantity | 10 |
| Shape Of Pin | flat (PCB type) |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Test Levels | level A group mounting |
| Control Circuit Voltage 10 | 24 V AC 50/60 Hz |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The main purpose of the RSB Interface plug-in Relay is having at least 2 C/O contacts for switching by a small control signal controlling a larger load current or voltage. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR |
| Recyclability Potential In % | 75 |
| [Ithe] Conventional Enclosed Thermal Current | 12 A -40-40 °C |
| [Ui] Rated Insulation Voltage | 400 V IEC 60947 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490065 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Operating Rate | <= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load |
| Vibration Resistance | +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| [Uc] Control Circuit Voltage | AC 50/60 Hz, 24 V |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0016999426, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0000835679 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 7 kg CO2 eq., 7.3045550228 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Resistance | 368 Ohm AC 20 °C +/- 10 % |
| Contacts Material | silver alloy (AgNi) |
| Dielectric Strength | 1000 V AC between contacts2500 V AC between poles5000 V AC between coil and contact |
| Load Current | 12 A 250 V AC12 A 28 V DC |
| Mechanical Durability | 10000000 cycles |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protection Category | RT I |
| Relay Type | interface relay |
| Safety Reliability Data | B10d = 100000 |
| Series Name | RSB series |
| Shock Resistance | 10 gn 11 ms) not operating IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27 |
| Status Led | without |
| Switching Voltage | 12 V |
| Total Lifecycle Carbon Footprint | 7 kg CO2 eq. |
| Pep Code | ENVPEP2403026EN |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR |
| [Ie] Rated Operational Current | 12 A AC-1/DC-1) NO IEC6 A AC-1/DC-1) NC IEC |
| [Ue] Rated Operational Voltage | 19.2...36 V AC 50/60 Hz |
| [Uimp] Rated Impulse Withstand Voltage | 3.6 kV IEC 61000-4-5 |
| Package Weight(Lbs) | 12.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C AC), -40-70 °C AC)-40-70 °C AC), -40-70 °C AC) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 7.443814569 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2403026EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2403026EN |
| Ip Degree Of Protection | IP40 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | plug-in relay |
|---|
| Range Of Product | Harmony Electromechanical Relays |
|---|
ETIM
| ETIM 8 | EC001437 |
|---|
| ETIM 9 | EC001437 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
| Presentation Of Legend | without |
|---|
