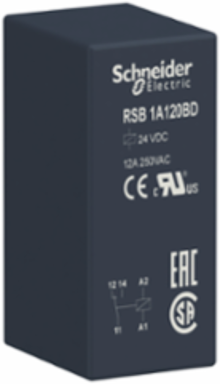

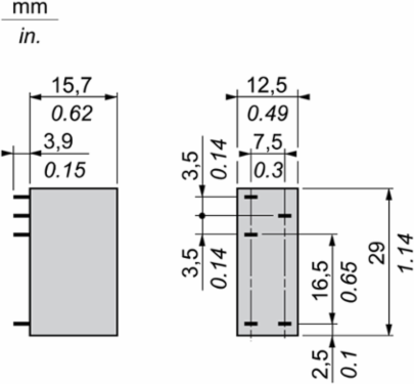

Schneider Electric RSB1A120BD Harmony Plug-in Relay 12A, 1CO, 24V DC, IP40, 30000000 Cycles

  • MPN: RSB1A120BD
  • PPN: SCH-RSB1A120BD
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $10.42

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V DC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

    Features

    • The RSB1A120BD features a compact, space-saving footprint specifically engineered for high-density DIN rail mounting. By reducing the horizontal space required for switching components, you can significantly shrink your enclosure size or add more I/O points without upgrading to a larger, more expensive cabinet.
    • Designed for seamless integration with modern automation systems, this relay operates on a 24V DC control signal. It draws minimal power, making it the ideal "bridge" component for a Programmable Logic Controller (PLC) to switch heavier loads while protecting your sensitive digital outputs from back-EMF and electrical noise.
    • Equipped with one Changeover (SPDT) contact rated for up to 12A at 250V AC, this Zelio interface relay handles high-inrush currents with ease. It provides a robust solution for switching solenoids, small motors, and lighting circuits, offering a much higher switching capacity than standard high-density terminal block relays.
    • This plug-in style relay is designed for use with RSZE series sockets, allowing for "hot-swappable" maintenance without disconnecting any field wiring. This modular approach slashes Mean Time to Repair (MTTR) and prevents wiring errors during replacement, keeping your production line or HVAC system running with minimal downtime.
