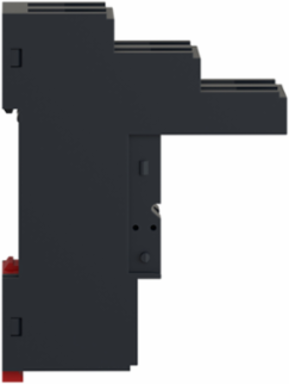

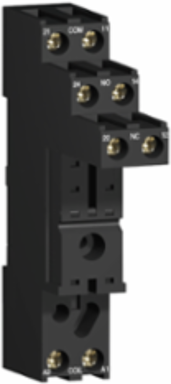

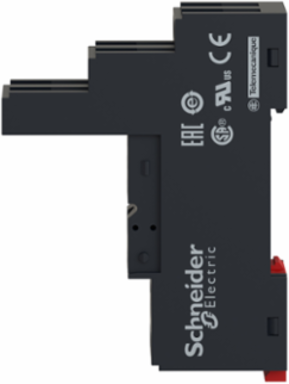

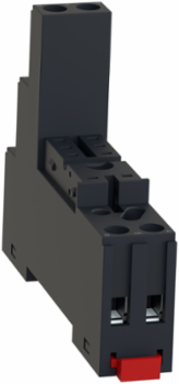

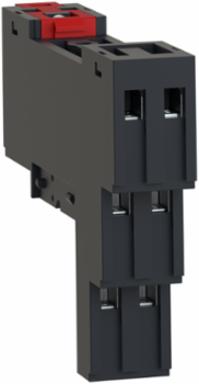

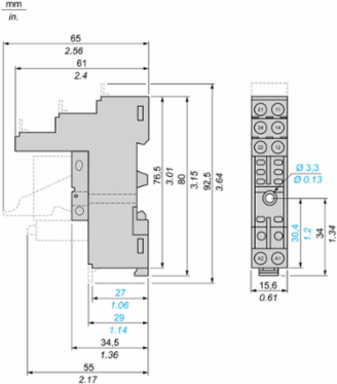

Schneider Electric RSZE1S48M Harmony Socket for RSB Relays, 10A, Screw Connections, 15.5 mm Width

  • MPN: RSZE1S48M
  • PPN: SCH-RSZE1S48M
  • UNSPSC: 39122335
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $15.72

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    "This Harmony RSB plug-in socket has a rated voltage of 250V AC with an output rating of 10A." "This plug-in relay socket is compatible with interface plug-in relay RSB range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."

    Features

    • Precision-engineered for the Schneider Electric Zelio RSB series, this 2-pole interface socket provides a perfect mechanical and electrical match for 12A and 16A sub-miniature relays. Using a dedicated, manufacturer-approved base ensures optimal pin alignment and contact pressure, preventing the high-resistance connections and intermittent signal loss common with generic third-party mounting.
    • Featuring a "separate" contact arrangement, this socket isolates the input (coil) terminals from the output (contact) terminals on opposite sides of the block. This logical, intuitive layout allows for cleaner wire routing and significantly reduces the risk of cross-wiring errors during high-density panel builds, making it an ideal choice for complex automation and PLC interface applications.
    • Designed for maximum flexibility, the RSZE1S48M snaps instantly onto standard 35mm DIN rails for rapid industrial deployment or can be panel-mounted via integrated screw holes. This dual-mounting capability allows technicians to standardize on a single socket model for both modern rail-based control centers and legacy machine retrofits, streamlining inventory and reducing installation labor
    • Rated with IP20 ingress protection, this socket features recessed screw-clamp terminals that prevent accidental finger contact with live electrical circuits. This safety-first design ensures your control panels remain compliant with OSHA and IEC 60529 standards, protecting maintenance personnel from shock hazards while maintaining a compact, professional-grade footprint.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginSingapore, United States
    Weight50 g

    Complementary Attributes

    Ue Rated Operational Voltage< 250 V AC, < 250 V AC< 250 V AC, < 250 V AC
    Uimp Rated Impulse Withstand Voltage3.6 kV
    Line Rated Current10 A

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Tightening Torque< 0.8 N.m M3, < 0.8 N.m M3< 0.8 N.m M3, < 0.8 N.m M3
    Certificate AgencyCSA, UL
    Carbon Footprint Of The End Of Life Phase C1 To C40 kg CO2 eq., 0.0077089927
    Carbon Footprint Of The Manufacturing Phase A1 To A30.5 kg CO2 eq., 0.5181902811
    Local Data StatusPublishable
    Return IndicatorY
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Compatibility CodeRSZ
    Contacts Type And Composition2 C/O
    Fixing Modeby screw (panel)clip-on (35 mm symmetrical DIN rail)
    MarkingCE
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony Electromechanical Relays
    Sale Per Indivisible Quantity10
    Software VersionEIME v5.9.1
    Total Lifecycle Carbon Footprint0.5 kg CO2 eq.
    Data Sourceextrapolated product
    Nbr. Of Units In Pkg.1
    Ith Conventional Free Air Thermal Current10 A
    Functional Unit DescriptionRGZ socket that can be mounted with RXG relays to facilitate electrical connection of relay and also to provide structural support to relay via attachment to DIN rail during 20 years with the following dimensions 73.3mm x 50.2 mm x 16 mm according to IEC 61984
    Functional Unit UnitUnit
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Connections Terminalsscrew connectors, screw connectors, 1 x 0.34...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endscrew connectors, 2 x 0.34...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endscrew connectors, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew connectors, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
    Carbon Footprint Of The Distribution Phase A40.0064511264, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.0004519456, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6kg CO2 eq., 0
    Local Publishable Date2026-08-10
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contact Terminal Arrangementseparate
    Device Short NameRSZ
    Group Of ProductRSB_1_C/O_SC_CONS_SEP_FLAT_16
    Overvoltage CategoryIII
    Product Or Component Typesocket
    ReturnabilityYes
    Shape Of Pinflat
    Sustainable PackagingYes
    Database Version2016-11
    Width Nominal15.5 mm
    Customs Code8536698000
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y20

    Environment Attributes Main

    Ambient Air Temperature For Operation-25-85 °C, -25-85 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.5328023459
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Product Compatibilityplug-in relay RSB with 2 C/O contact at 8 Aplug-in relay RSB with 1 C/O contact at 16 A
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2021-06-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Environmental DisclosureENVPEP2502016EN
    Ip Degree Of ProtectionIP20 conforming to IEC 60529
    Packaging Without Single Use PlasticYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2502016EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typesocket
    Range Of ProductHarmony Electromechanical Relays

    ETIM

    ETIM 8EC001456
    ETIM 10EC001456
    ETIM 9EC001456

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
