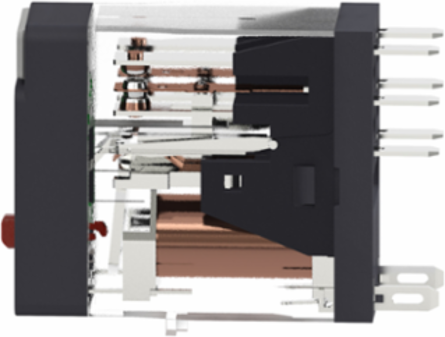

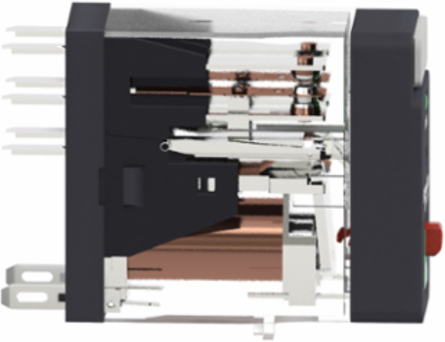

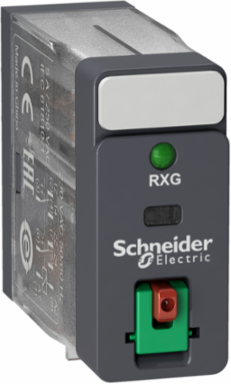

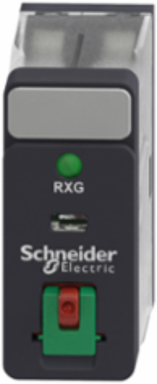

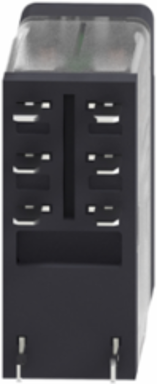

Schneider Electric RXG22M7 interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 220V AC
Schneider Electric RXG22M7 interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 220V AC
- MPN: RXG22M7
- PPN: SCH-RXG22M7
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$23.80/ EA
Description
This Harmony RXG plug-in relay socket has a coil control voltage of 220V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button and LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Specifications
Specifications
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- interface relay
- Local Signalling
- flag
- [Ithe] Conventional Enclosed Thermal Current
- 5 A -40-55 °C
Product Or Component Typeplug-in relay
Contacts Type And Composition2 C/O
Device Short NameRXG
Environment
- Product Certifications
- CSA || UL || EAC || CE || DNV-GL
- Standards
- UL 508 || IEC 61810-1 || CSA C22.2 No 14
- Relative Humidity
- 10-85 %
- Ip Degree Of Protection
- IP40
Ambient Air Temperature For Operation-40-70 °C
Vibration Resistance3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Ambient Air Temperature For Storage-40-85 °C
Complementary
- Utilisation Coefficient
- 20 %
- Safety Reliability Data
- B10d = 100000
- Average Consumption
- 0.82 VA 60 Hz
- Operating Rate
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Protection Category
- RT I
- Contacts Material
- silver alloy (AgSnO2In2O3)
- Shock Resistance
- 20 gn in operation || 100 gn not in operation
- Status Led
- with
- Colour Of Cover
- standard
- Control Type
- lockable test button
- [Ie] Rated Operational Current
- 5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
- Electrical Durability
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Resistance
- 21000 Ohm +/- 15 %
- Mounting Position
- any position
- Load Current
- 5 A 250 V AC
- Minimum Switching Capacity
- 50 mW 10 mA, 5 V DC
Maximum Switching Capacity1250 VA
[Uc] Control Circuit Voltage220 V AC 50/60 Hz
Insulation Resistance1000 MOhm 500 V DC
Torque Value0.8 N.m
Test Levelslevel A group mounting
Pollution Degree2
Dielectric Strength1000 V AC between contacts micro disconnection || 5000 V AC between coil and contact reinforced insulation || 3000 V AC between poles basic insulation
Net Weight0.02 kg
Maximum Switching Voltage250 V AC || 30 V DC
Device Presentationcomplete product
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Mechanical Durability10000000 cycles
Control Circuit Voltage Limits0.8...1.1 Uc AC
Overvoltage CategoryIII
Drop-Out Voltage Threshold>= 0.3 Uc AC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406006EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
