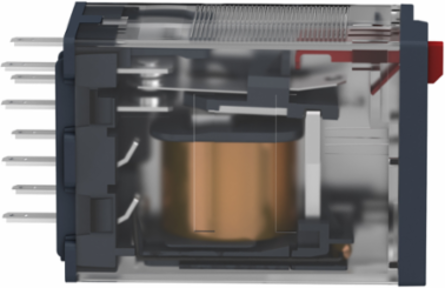

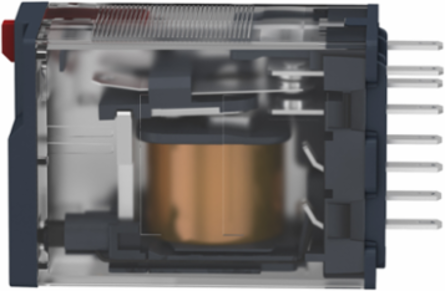

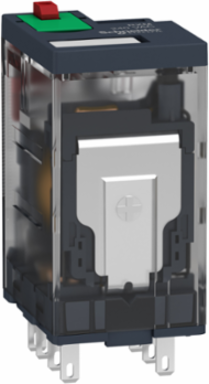

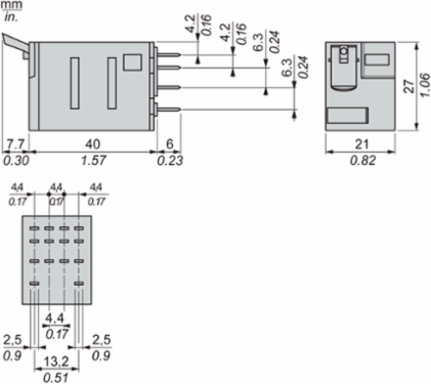

Schneider Electric RXM4AB1B7 Miniature Plug-in Relay 4 C/O, 6A, 24V AC, Lockable Test Button

MPN: RXM4AB1B7
PPN: SCH-RXM4AB1B7

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$17.38

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 24 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

Features

Engineered for standard industrial automation systems, this miniature relay operates on a 24V AC (50/60 Hz) control circuit voltage. It is tailored for safe, low-voltage control circuits, drawing an efficient average coil consumption of 1.2 VA to minimize heat generation within tightly packed electrical enclosures.
This general-purpose power relay provides a conventional enclosed thermal current rating of 6A at 250V AC or 28V DC for resistive loads, delivering a maximum switching capacity of 1500 VA / 168 W. It provides a reliable power interface between your low-power programmable logic controllers (PLCs) and heavier industrial loads like small motor controls, HVAC actuators, or lighting systems.

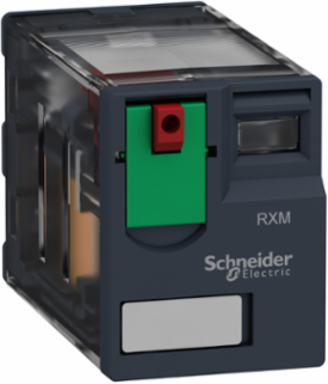

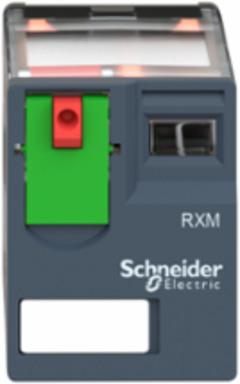

Equipped with a built-in, one-step lockable test button and an integrated mechanical flag indicator, this relay makes loop testing straightforward. Field technicians can manually actuate the contacts momentarily by pushing the red button or lock them in place by flipping up the green tab, allowing you to verify downstream wiring and system logic without needing to power up the entire control circuit.

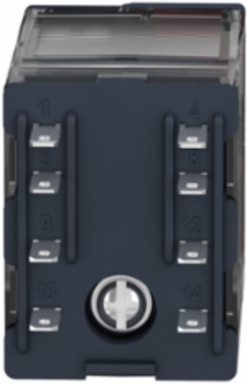

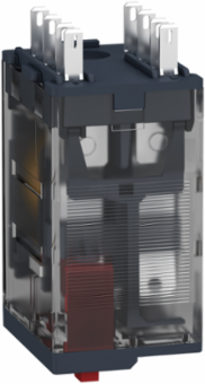

Built to the industry-standard Harmony RXM miniature profile with flat Faston-type pins, this unit plugs directly into matching RXZE series sockets (such as the RXZE2M114 screw-clamp or RXZE14P push-in terminal blocks). This plug-and-play format guarantees fast, tool-free replacement during preventative maintenance windows, drastically reducing downtime compared to hard-wired alternatives.
Designed for rigorous commercial and heavy industrial applications, the silver-nickel (AgNi) contacts offer high electrical durability of 100,000 cycles under resistive loads and an exceptional mechanical life of 10,000,000 cycles. With an operating temperature range spanning from -40 C to 55 C and IP40 ingress protection, it ensures stable switching performance inside panels subject to harsh manufacturing environments and vibration.
This product carries a full suite of global industrial certifications, including UL 508, CSA C22.2 No 14, CE, and IEC 61810-1 compliance, making it fully approved for use across North American and international markets. It ensures your custom control panels satisfy all strict regulatory inspection guidelines for machine automation and low/medium voltage switchgear.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, United Kingdom, Indonesia, Singapore, United States, ZZ

Physical Attributes

Cad Overall Depth	78.45 mm

Cad Overall Height	79 mm

Complementary Attributes

Control Circuit Type	AC
Maximum Switching Capacity	1500 VA/168 W
Minimum Switching Capacity	170 mW 10 mA, 17 V

Line Rated Current	6 A
Maximum Switching Voltage	250 V IEC
Rated Operational Voltage Limits	19.2...26.4 V AC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Dielectric Strength	1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation
Status Led	without, without
Certificate Agency	UL, Lloyd's, CE, CSA, EAC, IECEE CB Scheme
[Ui] Rated Insulation Voltage	250 V IEC300 V CSA, 300 V UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0048399687, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.3 kg CO2 eq., 0.2927376966
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Consumption	1.2 VA 60 Hz
Compatibility Code	RXM
Contacts Type And Composition	4 C/O
Electrical Durability	100000 cycles resistive
Mechanical Durability	10000000 cycles
Operating Time	20 ms
Product Or Component Type	plug-in relay
Range Of Product	Harmony Electromechanical Relays
Reset Time	20 ms
Safety Reliability Data	B10d = 100000

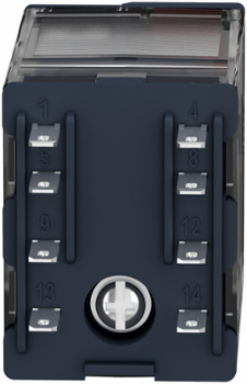

Shape Of Pin	flat (faston type)
Software Version	EIME v5.9.1
Test Levels	level A group mounting
Utilisation Coefficient	20 %
Control Circuit Voltage	24 V
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	RXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: China
Energy Model - Use [B6]	Electricity mix; AC; 120V; US
Recyclability Potential In %	55
[Ithe] Conventional Enclosed Thermal Current	6 A
Drop-out Voltage Threshold	>= 0.15 Uc>= 0.15 Uc
Package Weight(Lbs)	35.000 g
Warranty (In Months)	18
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	223.9872

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Operating Rate	<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Contacts Composition	4 C/O
[Uc] Control Circuit Voltage	AC 50/60 Hz, 24 V
Carbon Footprint Of The Distribution Phase [A4]	0.0047738385, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0002262618
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	18 kg CO2 eq., 17.7011382857
Local Publishable Date	2026-03-26
Stocking Flag	Y
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2106019EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Coil Consumption In Va	1.2-1.2 60 Hz
Average Resistance	180 Ohm 20 °C +/- 15 %
Contacts Material	AgNi
Control Type	lockable test button
Load Current	6 A 250 V AC6 A 28 V DC
Operating Position	any position
Product Availability	Stock - Normally stocked in distribution facility
Protection Category	RT I
Relay Type	miniature relay
Returnability	Yes
Series Name	RXM series
Shock Resistance	10 gnin operation30 gnnot operating
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	18 kg CO2 eq.
Vibration Resistance	3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Pep Code	ENVPEP2106019EN
Pep Verification Date	2021-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; 120V; US
[Ie] Rated Operational Current	6 A 250 V AC) NO IEC3 A 28 V DC) NC IEC3 A 250 V AC) NC IEC6 A 28 V DC) NO IEC6 A 277 V AC) UL8 A 30 V DC) UL
[Uimp] Rated Impulse Withstand Voltage	2.5 kV 1.2/50 µs
Nbr. Of Units In Pkg.	1
Take-back	No
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	223.9872
Customs Code	8536490065

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Ambient Air Temperature For Operation	-40-55 °C-40-55 °C
Environmental Disclosure	ENVPEP2106019EN
Ip Degree Of Protection	IP40 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2021-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	18.0037160514
Circularity Profile	ENVEOLI2106019EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2106019EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
