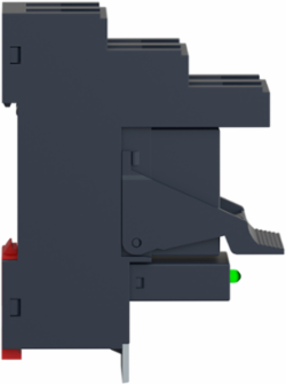

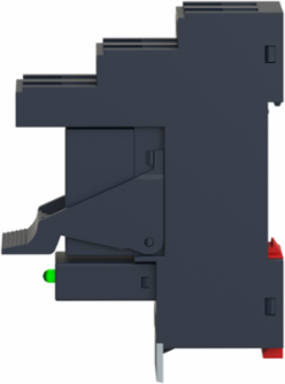

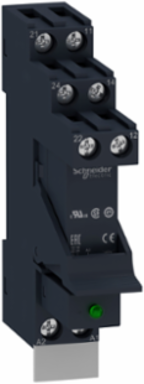

Schneider Electric RSB1A160P7PV Harmony Electromechanical Relay, 16A, 230V AC, 1 C/O, with LED
Schneider Electric RSB1A160P7PV Harmony Electromechanical Relay, 16A, 230V AC, 1 C/O, with LED
- MPN: RSB1A160P7PV
- PPN: SCH-RSB1A160P7PV
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$45.52/ EA
Description
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with varistor protection module and maintaining clamp. This is a 16A, 230Vac, 1 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The protection module comes with a green LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.050Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. This RSB plug-in relay range comprises of 12A relays with 1 CO contact, 16A relays with 1 CO contact, and 8A relays with 2 CO contacts.
Specifications
Environment
- Product Certifications
- CE || UL || CSA || EAC
- Ambient Air Temperature For Operation
- -40-70 °C AC)
- Dielectric Strength
- 1000 V AC between contacts || 5000 V AC between coil and contact
- Ip Degree Of Protection
- IP20 IEC 60529
StandardsIEC 61810-1 || CSA C22.2 No 14 || UL 508 || IEC 61984
Shock Resistance10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
Vibration Resistance+/- 1 mm 10-55 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 Months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406006EN
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Toxic Heavy Metal FreeYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Maximum Switching Capacity
- 4000 VA AC || 448 W DC
- [Ue] Rated Operational Voltage
- 184...253 V AC 50/60 Hz
- Torque Value
- 0.8 N.m || 7.0 lbf.in
- Test Levels
- level A group mounting
- Net Weight
- 0.050 kg
- Maximum Switching Voltage
- 300 V DC IEC
- Device Presentation
- complete product
- Switching Voltage
- 12 V
- [Ie] Rated Operational Current
- 16 A AC-1/DC-1) NO IEC || 8 A AC-1/DC-1) NC IEC
- [Ui] Rated Insulation Voltage
- 400 V IEC 60947
- Electrical Durability
- 70000 cycles, 16 A 250 V, AC-1 NO || 70000 cycles, 8 A 250 V, DC-1 NC
- Operating Position
- any position
- Load Current
- 16 A 250 V AC
- Minimum Switching Capacity
- 120 mW 10 mA, 12 V
Safety Reliability DataB10d = 100000
Operating Rate<= 600 cycles/hour under load || <= 18000 cycles/hour no-load
Protection CategoryRT I
Contacts Materialsilver alloy (AgNi)
[Uimp] Rated Impulse Withstand Voltage3.6 kV IEC 61000-4-5
Average Resistance32500 Ohm AC 20 °C +/- 15 %
Connections - Terminalsconnector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Average Coil Consumption0.75 VA AC
Sale Per Indivisible Quantity30
Minimum Switching Current10 mA
Mechanical Durability10000000 cycles
Operating Time20 ms operating || 20 ms reset
Drop-Out Voltage Threshold>= 0.15 Uc AC
Specifications
- [Uc] Control Circuit Voltage
- 230 V AC 50/60 Hz
- Product Or Component Type
- pre-assembled plug-in relay with socket
- Control Type
- without
- Contacts Type And Composition
- 1 C/O
- Device Short Name
- RSB
Range Of ProductHarmony Electromechanical Relays
Status Led1 LED
Series Nameinterface relay
Contact Operationstandard
[Ithe] Conventional Enclosed Thermal Current16 A -40-40 °C
