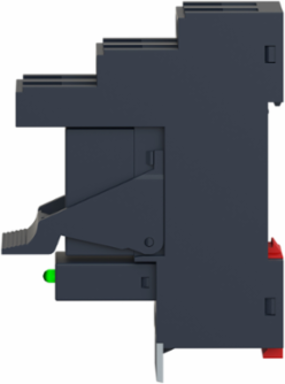

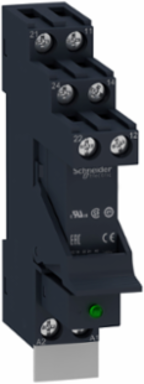

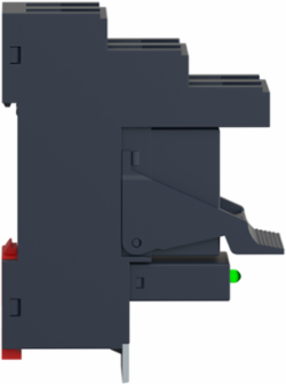

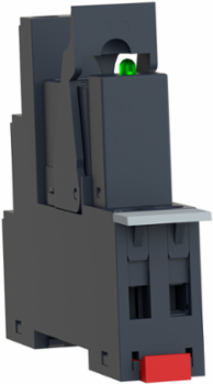

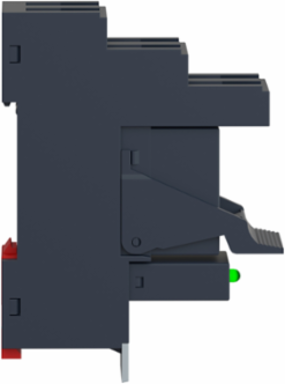

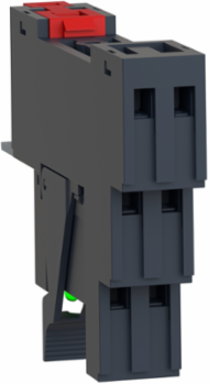

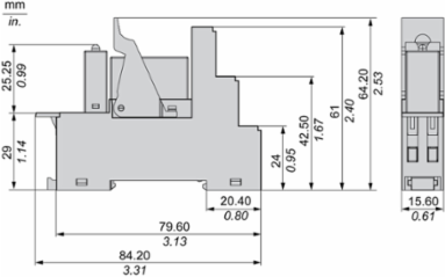

Schneider Electric RSB2A080B7PV Electromechanical Plug-In Relay, 8A, 2CO, 24V AC, LED Indicator
- MPN: RSB2A080B7PV
- PPN: SCH-RSB2A080B7PV
CAD
$46.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with varistor protection module and maintaining clamp. This is a 8A, 24Vac, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The protection module comes with a green LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.057Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. This RSB plug-in relay range comprises of 12A relays with 1 CO contact, 16A relays with 1 CO contact, and 8A relays with 2 CO contacts.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia
Complementary Attributes
- Rated Current
- 8 A
- Line Rated Current
- 8 A
- Maximum Switching Voltage
- 300 V DC IEC
- Minimum Switching Current
- 10 mA
Control Circuit TypeAC
Maximum Switching Capacity224 W DC2000 VA AC
Minimum Switching Capacity120 mW 10 mA, 12 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 100000 cycles, 12 A at 250 V, AC-1 NO, 100000 cycles, 6 A at 250 V, DC-1 NC
- Operating Time
- 20 ms operating, 20 ms reset
- Vibration Resistance
- +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
- Certificate Agency
- CE, UL, CSA, EAC
- Connections - Terminals
- screw connectors, connector, 1 x 0.25...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endconnector, 2 x 0.25...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endconnector, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endconnector, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0078458891, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0003856979
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 8 kg CO2 eq., 7.7846845966
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Resistance
- 350 Ohm AC 20 °C +/- 15 %
- Contact Operation
- standard
- Contacts Material
- silver alloy (AgNi)
- Control Type
- without lockable test button
- Load Current
- 8 A 250 V AC8 A 28 V DC
- Operating Position
- any position
- Product Or Component Type
- pre-assembled plug-in relay with socket
- Range Of Product
- Harmony Electromechanical Relays
- Returnability
- Yes
- Sale Per Indivisible Quantity
- 30
- Shape Of Pin
- flat (PCB type)
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Test Levels
- level A group mounting
- Control Circuit Voltage
- 12 V
- Pep Code
- ENVPEP2403026EN
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- [Ie] Rated Operational Current
- 4 A AC-1/DC-1) NC IEC8 A AC-1/DC-1) NO IEC
- [Ue] Rated Operational Voltage
- 19.2...26.4 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 3.6 kV IEC 61000-4-5
- Package Weight(Lbs)
- 60.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Rate<= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Torque Value0.8 N.m, 7.0 lbf.in
Contacts Composition2 C/O
[Uc] Control Circuit VoltageAC 50/60 Hz, 12 V
Drop-out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC>= 0.15 Uc AC, >= 0.15 Uc AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1002026769, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.5343021033
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1907
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Coil Consumption0.75 VA AC
Compatibility CodeRSB
Contact Terminal Arrangementseparate
Contacts Type And Composition2 C/O
Dielectric Strength1000 V AC between contacts2500 V AC between poles5000 V AC between coil and contact
Mechanical Durability5000000 cycles
Product AvailabilityStock - Normally stocked in distribution facility
Protection CategoryRT I
Relay Typeinterface relay
Safety Reliability DataB10d = 100000
Series NameRSB series
Shock Resistance10 gn 11 ms) not operating IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27
Status Ledwith
Switching Voltage12 V
Total Lifecycle Carbon Footprint8 kg CO2 eq.
Control Circuit Type2AC
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe main purpose of the RSB Interface plug-in Relay is having at least 2 C/O contacts for switching by a small control signal controlling a larger load current or voltage. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance.
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential In %75
[Ithe] Conventional Enclosed Thermal Current8 A -40-40 °C
[Ui] Rated Insulation Voltage400 V IEC 60947
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410020
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C AC), -40-70 °C AC)-40-70 °C AC), -40-70 °C AC)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 8.4274209637
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2403026EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2403026EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- pre-assembled plug-in relay with socket
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 Months
Warranty18 Months
Overview Attributes
- Device Presentation
- complete product
