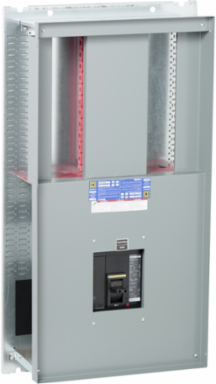

Square D HCJ18736MP I-Line Panelboard, 600A, 36 Inch CB Space, 32 Inch W x 73 Inch H
- MPN: HCJ18736MP
- UPC: 785901316022
- PPN: SCH-HCJ18736MP
- UNSPSC: 39121103
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric HCJ18736MP I-Line Panelboard is engineered to meet the demanding requirements of modern electrical installations, boasting a substantial 600A capacity and offering a spacious 36-inch circuit breaker configuration. This panelboard is designed with efficiency in mind, featuring a width of 32 inches and a height of 73 inches, making it suitable for versatile applications while ensuring optimal space utilization. With its robust construction and reliable performance, this I-Line panelboard is an excellent choice for professionals looking to enhance the electrical management capabilities of their systems.
Features
- 600VAC, 250VDC maximum
- Fully rated and series rated system available
- Dead front trim is easily installed
- Factory assembled or ready to install
- UL Listed
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 8.75 in |
| Weight | 52617 g |
|---|
Physical Attributes
| Bar Length | 36 in |
|---|
Complementary Attributes
| Line Rated Current | 600 A |
|---|
Important Information Attributes
| Circuit Breaker Type | B-Frame, J-frame, H-frame, Q-Frame, QO |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 76 kg CO2 eq., 76.39345586855644 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 311 kg CO2 eq., 310.7519881894429 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2541 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Enclosure Type | distribution enclosure |
| Load Center Type | main breaker |
| Material | painted steel |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | interiors |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 827 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 26.44 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Carbon Footprint Of The Distribution Phase A4 | 0, 0 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.12348559172716975, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 440 kg CO2 eq., 439.9053051682718 |
| Local Publishable Date | 2025-11-13 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Localisation On Device | interior |
| Phase | 3 phase |
| Product Destination | enclosure HCJ 32 in 73 in 9.5 in |
| Range Of Product | I-Line |
| Software Version | v6.2.5-6 |
| Tightening Torque | 37.96-37.96 N.m (2/0 AWG...500 kcmil) |
| Database Version | 2024-01 |
| Height Nominal | 48.02 in |
| Certificate Agency | cULus |
| Customs Code | 8537109150 |
| Functional Unit Description | Accommodate and protect control, command and protection devices in a single interior panelboard (2184.4 mm x 1066.8 mm x 241.3 mm ) with rated current In = 400 A, degree of protection IP = IP30, degree of protection IK = IK07, for a reference service life of 20 years, in commercial/industrial application. The product is passive (no operational energy use) |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 78 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 827.1742348179982 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-11-10 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2509033_V1 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2509033_V1 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Phase | 3 phase |
|---|---|
| Range Of Product | I-Line |
| Product Or Component Type | interiors |
|---|
