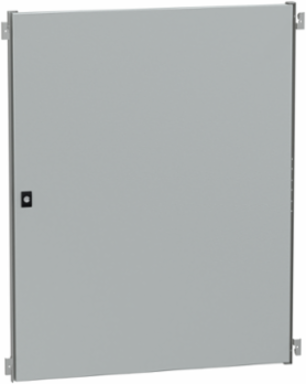

Schneider Electric NSYPIN108 Internal Door for Spacial WM Enclosure, 1000 x 800 mm, 10 kg
- MPN: NSYPIN108
- PPN: SCH-NSYPIN108
CAD
$290.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Internal door for Spacial WM steel enclosures (CRN, S3D, S3X). Enclosures H is1000 x W is800 mm. Multi-purpose application. Maximum load 30 kg/m². 1 lock, 3 mm double bar insert. Step slides or front side mounting location. Adjustment is pitch 25 mm (on step slides). Sheet steel made. Grey RAL 7035. Door, 4 fixing brackets, 2 mounting uprights incl.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain, France
Physical Attributes
- Color
- all faces Gray RAL 7035)
Complementary Attributes
- Maximum Load
- 30 kg/m²
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 door, 4 fixing brackets, 2 mounting uprights
- Mounting Location
- step slide, front side
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Door Type
- internal plain
- Lock Type
- lock 3 mm double bar
- Number Of Locks
- 1
- Product Or Component Type
- door
- Returnability
- No
- Sustainable Packaging
- No
- Height Nominal
- nominal: 1000 mm
- Accessory / Separate Part Category
- enclosure accessory
- Package Weight(Lbs)
- 11.912 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentpitch 25 mm (on step slides)
Door Opening Sidereversible
Energy Efficiency OptimizedFalse
Materialdoor sheet steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Surface Finishpolyester powder
Pep CodeENVPEP1001004EN
Width Nominalnominal: 800 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- door
ETIM
- ETIM 8
- EC000747
ETIM 9EC000747
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
