Schneider Electric NSYPIN75 Internal door for Spacial WM encl. H700xW500 steel, RAL7035.Adjustable in depth

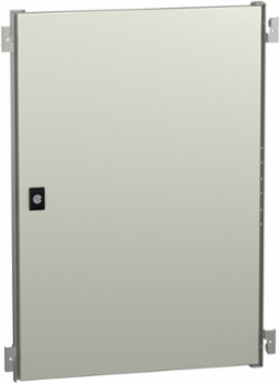

Internal door for Spacial WM encl. H700xW500 steel, RAL7035.Adjustable in depth
  • MPN: NSYPIN75
  • PPN: SCH-NSYPIN75

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$194.83/ EA

    Description

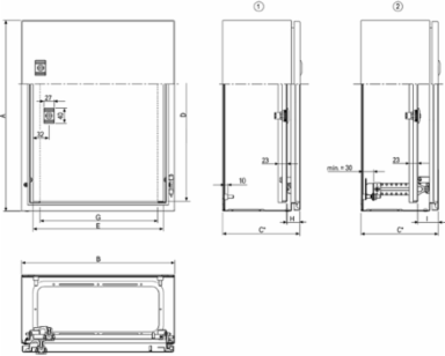

    Internal door for Spacial WM steel enclosures (CRN, S3D, S3X). Enclosures H is700 x W is500 mm. Multi-purpose application. Maximum load 30 kg/m². 1 lock, 3 mm double bar insert. Step slides or front side mounting location. Adjustment is pitch 25 mm (on step slides). Sheet steel made. Grey RAL 7035. Door, 4 fixing brackets, 2 mounting uprights incl.

    Specifications

    Complementary

    Adjustment
    pitch 25 mm (on step slides)
    Surface Finish
    polyester powder
    Net Weight
    5.6 kg
    Width
    nominal 500 mm
    Material
    door sheet steel
    Colour
    all faces grey RAL 7035)
    Number Of Locks1
    Lock Typelock 3 mm double bar
    Door Opening Sidereversible
    Heightnominal 700 mm
    Maximum Load30 kg/m²
    Door Typeinternal plain

    Specifications

    Range Compatibility
    Spacial Spacial CRN || Spacial Spacial S3D || Spacial Spacial S3X
    Product Or Component Type
    door
    Range
    Spacial
    Device Application
    multi-purpose
    Accessory / Separate Part Categoryenclosure accessory
    Device Composition1 door || 4 fixing brackets || 2 mounting uprights
    Mounting Locationfront side || step slide

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP100104EN
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Circularity Profile
    N/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
