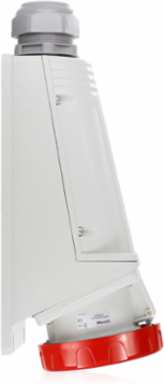

Leviton W4125-S6 125 Amp International Pin & Sleeve Outlet, 346-415 Volt, IP66, 4 Poles, Red
- MPN: W4125-S6
- UPC: 078477679708
- PPN: LEV-W4125-S6
CAD
$492.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

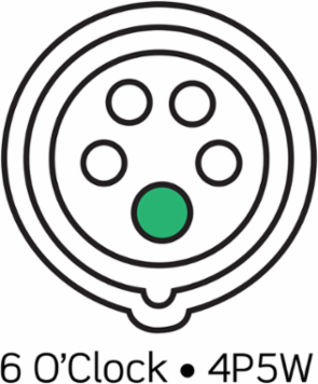

125 Amp, 346-415 Volt, 3P+N+E (4P, 5W), Clock Position 6, IEC/EN 60309-1 & 60309-2, International Configuration Surface Mounting Socket Outlet, Industrial Grade, IP66/67, Watertight - RED
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| CE | Marked |
|---|---|
| NOM Certified | Yes |
| IEC Rating | 60309-1 and 60309-2 |
|---|---|
| RETIE Certified | Yes |
Material Specifications
| Contacts | Nickel Plated Brass |
|---|
| Housing | Halogen-free engineering polymer |
|---|
Mechanical Specifications
| Terminal Accom. | #4 - 2/0 AWG |
|---|
Product Features
| Color | Red |
|---|
| Device Type | Receptacle |
|---|
Environmental Specifications
| IK Rating | IK08 |
|---|---|
| Operating Temperature | -25°C to 40°C |
| IP Rating | IP66/IP67 |
|---|
Electrical Specifications
| Amperage | 125 A |
|---|---|
| Pole | 4 |
| Wire | 5 |
| Frequency | 50/60Hz |
|---|---|
| Voltage | 346-415 VAC |
