Balluff BNI IOL-104-S02-R012 IO-Link sensor/actuator hubs BNI IOL-104-S02-R012

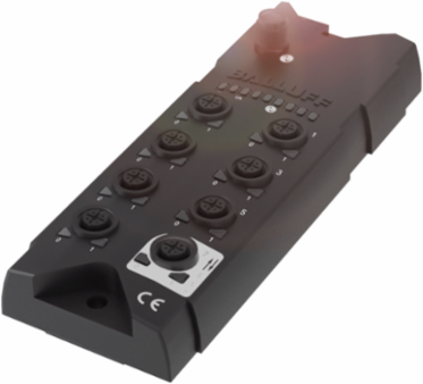

IO-Link sensor/actuator hubs BNI IOL-104-S02-R012
  • MPN: BNI IOL-104-S02-R012
  • PPN: BAL-BNI0090

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$551.30/ EA

Description

Our I/O modules with their robust housings are suitable for use in a harsh industrial environment. The I/O hubs are based on M12 or M8 plug connections and are easy and economical to install and maintain.

Specifications

Specifications

Interface
IO-Link 1.1
Connection (COM 1)
M12x1-Male, 4-pin, A-coded
Digital inputs
16x PNP, Type 3
Additional function
Extension port, Single-channel monitoring
Dimension
68 x 36.8 x 183.5 mm
IP rating
IP67 when threaded in
Process data cycle min.
4.5 ms
Operating voltage Ub18-30.2 VDC
Connection ports8x M12x1-Female, 5-pin, A-coded
Configurable inputs/outputsno
Housing materialPPS
Ambient temperature-5-70 °C
Transfer rateCOM2 (38.4 kBaud)
Process data IN4

Downloads
