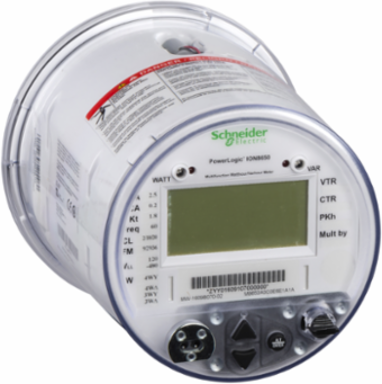

Schneider Electric M8650A0C0H6E1B0A ION8650 Energy Meter 128MB, 9S/29S/36S, 120-277V AC, Ethernet
Schneider Electric M8650A0C0H6E1B0A ION8650 Energy Meter 128MB, 9S/29S/36S, 120-277V AC, Ethernet
- MPN: M8650A0C0H6E1B0A
- PPN: SCH-M8650A0C0H6E1B0A
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
The PowerLogic ION8650 series meters are ideal for energy, power quality metering and independent power producers. These meters offer a wide versatility of feature and total performance. The meter can be the solution for transmission or distribution network. The modular, flexible ION technology architecture enables a simple, building block approach for customizing each meter to any application. Enable for the user acces to the analysis of energy, bill verification, cost allocation and more. And a number of power quality reporting. With 128 MB of memory to support data logs, alarms, RMS logging, historical logs, transient logs, event logs, revenue logs, GPS synch and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization methods that include SNTP, IRIG-B, GPS ASCII (RS485) and network time set function. Providing 1024 samples per cycle with Voltage inputs of 57-277 VAC L-N / 100-480 VAC L-L; Current inputs of 1 A, 2 A, and 5 A. Wide control power range of 57-277 VAC or external power source: pigtail 65-120 VAC or 80-160 VDC. Onboard input output configurtion include 3 digital inputs, 2 pulse outputs and 4 relay outputs plus up to 3 dry contact sensing inputs. Multiple communication ports include: RS232/RS485, RS485, Infrared (ANSI type II) and Ethernet 10/100 BASE-T. Mechanical dimensions are 178 mm in height, 178 mm in width and 237 mm in depth, for a product weight of 7 kg. Certified for compliance report (EN 50160 ed. 4), and power quality measurement (IEC 61000-4-30 Class A). Socket form factor, setting available in 9S/29S/36S Base wiring 3-Element, 4-Wire / 2 1/2-Element, 4-Wire. With integrated display. Operating environment of -40 to +85C; Humidity rating of 5% to 95%; Altitude up to 3000 m. You can find the following accessories for ION8650: some input/output expanders, A-base adaptors and communication cable. Integration with EcoStruxure Power Operations software through multiple communication channels and protocols, Including Itron MV-90, Modbus, DNP, DLMS, IEC 61850. These meters give utilities the tools to manage complex energy supply contracts that include commitments to power quality.
Specifications
Environment
- Ambient Air Temperature For Operation
- -40-85 °C
- Standards
- ANSI C12.1 || IEC 62052-11
- Net Weight
- 7 kg
- Pollution Degree
- 2
- Ambient Air Temperature For Storage
- -40-85 °C
- Mounting Support
- enclosure door
- Width
- 178 mm
- Depth
- 237 mm
Height178 mm
Electromagnetic Compatibilityelectrostatic discharge immunity test conforming to IEC 61000-4-2 || conducted RF disturbances conforming to IEC 61000-4-6 || immunity to impulse waves conforming to IEC 61000-4-12 || electrical fast transient/burst immunity test conforming to IEC 61000-4-4 || susceptibility to electromagnetic fields conforming to IEC 61000-4-3 || 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 || conducted and radiated emissions B conforming to CISPR 22
Type Of Installationindoor installation
Mounting Modesocket-mounted
Relative Humidity5-95 %
Ip Degree Of Protectionfront face IP65 || back IP51
Overvoltage CategoryIII
Operating Altitude0...3000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP110723EN
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI110703EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Network Frequency
- 60 Hz
- Power Quality Analysis
- IEC 61000-4-15 flicker || magnitude harmonic up to the 50th || transient capture || EN 50160 ed. 4 compliance report || harmonic distortion || voltage sag and swell detection || waveform capture || programmablity (logic and math functions) || up to the 63rd harmonic || IEC 61000-4-30 class A power quality measurement
- Sampling Rate
- 1024 samples/cycle
- Number Of Outputs
- 2 pulse || 4 form C relay output
- Communication Port Protocol
- DNP3 300...115200 bauds || ION 300...115200 bauds || Ansi C12.18 <= 19200 bauds || IEC 61850 ed. 2 10/100 Mbit/s || TCP/IP 10/100 Mbit/s || DLMS 300...115200 bauds || Modbus 57600 bauds || DNP3 10/100 Mbit/s || ION 10/100 Mbit/s || Modbus RTU, master/slave 300...115200 bauds || Modbus TCP, master/slave 10/100 Mbit/s || EtherGate
- Number Of Inputs
- 3 digital 0.001...100 mA 30 V DC
- Measurement Current
- 0.001-24 A
- Time Synchronisation Protocol
- IRIG-B || GPS: Truetime/Datum
- Ethernet Service
- enable/disable serial ports || enable/disable Ethernet protocols || SNMP-Traps and SYSLOG
- Compatibility Code
- ION8650A
- [Us] Rated Supply Voltage
- 120...277 V AC 47...63 Hz || 65...120 V AC 47...63 Hz || 80...160 V DC
- Outlet Standard
- American
- Web Services
- robust security logs || web server || port addressing user designed || alarm notification by e-mail
- Transmission Rate
- 300...115200 bauds || 57600 bauds || 10/100 Mbit/s || <= 19200 bauds
- Accuracy Class
- class 0.2S energy IEC 62053-23 || class 0.2 energy ANSI C12.20 || class 0.2S energy IEC 62053-22
Communication Port SupportRJ45 ETHERNET || SUB-D 9 RS485/RS232 || terminal block RS485 || infrared
Measurement Voltage57-277 V AC phase to neutral || 100-480 V AC phase to phase
Memory Capacity128 MB
Type Of Measurementcurrent || voltage || frequency || apparent power total || power factor total || apparent power per phase || power factor per phase || active power total || active power per phase || reactive power total || reactive power per phase
Power Consumption In Va24 VA
Tamperproof Of Settingsprotected by access code
Form Designation9S 3-element 4 || 36S 2 1/2-element 4 || 29S 2 1/2-element 4
Measurement Accuracycurrent 0.1 % || voltage 0.1 % || power 0.1 % || power factor 0.1 % || frequency 0.001 Hz || energy 0.1 %
Poles Description1P + N || 3P + N || 3P
Data Recordingharmonics logs || transient logs || historical logs || data logs || event logs || revenue logs || time stamping || sag and swell logs || alarms || GPS synchronisation
[In] Rated Current1 A || 5 A || 2 A
Analogue Input Typecurrent 0.01...20 A (impedance 0.05 Ohm)
Display TypeFSTN transflective LCD
Device Applicationenergy pulsing and totalisation || co-generation and IPP monitoring || demand and power factor control || load curtailment || instrument transformer correction || equipment monitoring and control || tariff metering
Maximum Power Consumption In Va33 VA
Specifications
- Product Or Component Type
- revenue and power quality meter
- Device Short Name
- ION8650A
RangePowerLogic
