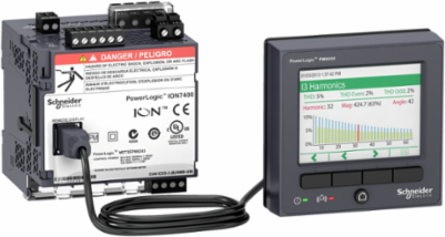

Schneider Electric METSEION7404A Power quality meter, PowerLogic ION7400, Advanced, transducer and remote display, 512 MB, 512 s/c
- MPN: METSEION7404A
- PPN: SCH-METSEION7404A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Power quality meter, PowerLogic ION7400, Advanced, transducer and remote display, 512 MB, 512 s/c
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Canada |
|---|
| Depth | 90.8 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IPEthernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004, DLMS |
|---|---|
| Communication Network Type | IPv6 (internet protocol) |
| Communication Service | SMTP e-mail notification, NTP time synchronization, RSTP support, DHCP, PTP time synchronization |
|---|---|
| Communication Port Support | ETHERNETscrew terminal block RS485mini B USB USB |
Complementary Attributes
| Line Rated Current | 1 A, 5 A, 10 A |
|---|
Important Information Attributes
| Cybersecurity | enable/disable communication ports, port hardening, Syslog protocol support, password protection, robust security logs |
|---|---|
| Device Application | revenue billing, WAGES metering, data aggregation, power monitoring |
| Information Displayed | voltage, current, frequency, power, energy consumption, harmonic distortion |
| Measurement Accuracy | current +/- 0.1 %, voltage +/- 0.1 %active energy +/- 0.2 % |
| Network Frequency | 50 Hz, 60 Hz |
| Power Quality Analysis | EN 50160 2010 compliance reportIEEE 519 2014 compliance report, IEC 61000-4-30 class A power quality measurement, up to the 63rd harmonic, harmonic distortion, waveform capture, EN 50160 2010 voltage sag and swell detection, IEC 61000-4-30 class A programmablity (logic and math functions)IEC 62586 power quality monitoringIEC 61000-4-15 flicker, IEC 61000-4-15 disturbance direction detection, rapid voltage change |
| Web Services | customizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server |
| Carbon Footprint Of The Distribution Phase [A4] | 3.447067675709086, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.009670708852888416, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 216 kg CO2 eq., 215.63099370085487 |
| Local Publishable Date | 2025-07-10 |
| Stocking Flag | Y |
| Serviceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Device Short Name | ION7403 |
| Display Type | remote LCD display |
| Frequency Measurement Range | 42-69 Hz |
| Measurement Current | 50-10000 mA |
| Memory Capacity | 512 MB |
| Power Consumption In Va | 18 VA 415 V AC |
| Product Name | PowerLogic ION7400 |
| Provided Equipment | remote display |
| Returnability | No |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 317 kg CO2 eq. |
| Pep Code | ENVPEP1512006EN |
| Pep Verification Date | 2025-03-21 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 90.5 mm |
| [Us] Rated Supply Voltage | 90...415 V AC 45...65 Hz +/- 10 %110...415 V DC +/- 10 % |
| Package Weight(Lbs) | 1.437 kg |
| Warranty (In Months) | 18 |
| Other Technical Guide Name | PLSED310113EN |
| Data Recording | time stamping, trending/forecasting, waveform logs, sequence of event recording, min/max of instantaneous values, harmonics logs, data logs, sag and swell logs, GPS synchronisation, event logs, alarm logs, 64 data recorders |
|---|---|
| Electromagnetic Compatibility | electrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579surge withstand (2...150 Hz) conforming to IEEE C37.90.1 |
| Isolation Voltage | III400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3 |
| Mounting Mode | flush-mounted, clip-on |
| Number Of Poles | + N, 3P, 1P + N |
| Type Of Measurement | active and reactive power per phase, rmsapparent power per phase, rmspower factor per phase, rmscurrent total, voltage totalfrequency per phase, rms, active and reactive power total, apparent power total, power factor total, active and reactive energy, apparent energy per phase, rms |
| Certificate Agency | CE, cULus, N998 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 4 kg CO2 eq., 3.5462823334204177 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 94 kg CO2 eq., 94.10063441041382 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1512006_V2 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2333 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Kit Identifier | N |
| Display Resolution | 320 x 240 pixels QVGA |
| Energy Efficiency Optimized | False |
| Installation Category | III |
| Measurement Voltage | 57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases |
| Mounting Support | DIN rail meter deviceframework remote display |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | power meter |
| Range | PowerLogic |
| Sampling Rate | 512 samples/cycle |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | To measure energy consumption and display the information on a screen, capable of operating within the following electrical parameters:& 10The ION7400 Power Meter operates within voltage ranges of 90-415V (50/60Hz) at <lt/>36VA, 90-120V (400Hz) at <lt/>28VA, and 120-300V at 17W, with current ratings of 1A for 0.5 seconds and 5A for 0.2 seconds, designed for 10 years of use at a 100% rate, consuming 5W in active mode (10% of the time) and 4W in standby mode (90% of the time), all in compliance with relevant standards. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; High voltage; 2020; Canada, CA |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Chile, CL |
| Recyclability Potential In % | 4 |
| Width Nominal | 90.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 9028300000 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 316.7346488292511 |
| Circularity Profile | ENVEOLI1512006_V2 |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 9842.52 ft (3000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % |
| Pep Verification Date | 2025-03-21 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | -25-70 °C-25-70 °C |
| Environmental Disclosure | ENVPEP1512006EN |
| Ip Degree Of Protection | IP30 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1512006EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | power meter |
|---|
| Provided Equipment | remote display |
|---|
ETIM
| ETIM 8 | EC002301 |
|---|
| ETIM 9 | EC002301 |
|---|
Output Attributes
| Number Of Outputs | 1 pulse |
|---|
Input Attributes
| Analogue Input Type | voltage (impedance 5 MOhm)current (impedance 0.3 mOhm) |
|---|
| Number Of Inputs | 3 digital 30 V AC3 digital 60 V DC |
|---|
