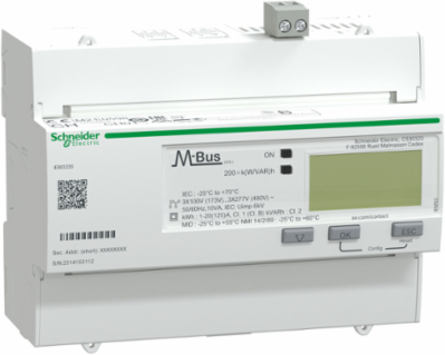

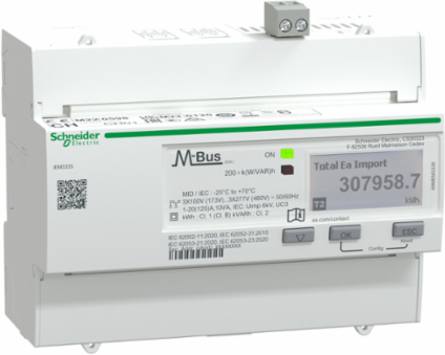

Schneider Electric A9MEM3335 iEM3335 Energy Meter 125A M-Bus LCD Display Multi-Tariff
- MPN: A9MEM3335
- PPN: SCH-A9MEM3335
CAD
$662.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 125A via direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is M-Bus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 4.96 in (126 mm), depth 2.72in (69 mm), height 4.1 in (103 mm) and product weight 9.17 oz (260 g).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Singapore
Depth69.3 mm
Communications & Management Attributes
- Communication Port Protocol
- M-bus 300, 600, 1200, 2400, 4800 and 9600 bauds 3750 V
Communication Port Supportscrew terminal block M-Bus
Physical Attributes
- Color
- White
Complementary Attributes
- Rated Voltage
- 100-277 V, 173-480 V
- Maximum Value Measured
- 99999999.9 kWh
Line Rated Current125 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Device Application
- sub billing, multi-tariff, partial meter
- Network Frequency
- 60 Hz, 50 Hz
- Type Of Measurement
- active and reactive energy, active and reactive power, current, voltage
- Carbon Footprint Of The Distribution Phase [A4]
- 0.13585706652961055, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.13601001279183994
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 49 kg CO2 eq., 48.60842105263158
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- DPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1404007_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1201
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- iEM3335
- Display Type
- LCD display
- Information Displayed
- tariff 4)
- Measurement Current
- 0-125 A
- Mounting Mode
- clip-on
- Overvoltage Category
- III
- Product Name
- Acti9 iEM3000
- Range
- Acti9
- Sampling Rate
- 32 samples/cycle
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 62 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- This is a energy measuring meter which can measure 125 A current with Modbus protocol,1 digital input and 1 digital Output feature for service life of 10 years& 10Dimensions: H103.2mm x L126mm x D69.3mm& 10IP40 front panel: conforming to IEC 60529& 10IP20 body: conforming to IEC 60529
- Functional-unit Unit
- EACH
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 32
- Width Nominal
- 126 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 7.216
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationResidential, Commercial, Industrial
Market Segmentbuildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: panelboardbuildings large building cost management: billing: sub feeder, buildings large building cost management: billing: panelboardbuildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: panelboard, data center cost management: cost allocation, healthcare cost management: cost allocation, industry cost management: cost allocationbuildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: panelboard, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing, healthcare cost management: billing, industry cost management: billing, buildings small building cost management: cost allocation: main incomer
Number Of Poles3P, 3P + N, 1P + N
Certificate AgencyMID EN 50470-1 sub-meter)CE IEC 61010-1 safety)CE EN 61557-12 power monitor)CE EN/IEC 61326-1 EMC)UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC)cULus UL 61010-1 safety), cULus EN 61010-1 safety), EAC EN 50470-3 sub-meter)RCM EN 62052 sub-meter), KZ EN 50470-3 sub-meter)METAS EN 50470-1 sub-meter), MID EN 50470-3 sub-meter)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.8500141469659602, 0.9 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]13 kg CO2 eq., 12.694539765037911
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310049EN_Web.pdf, PLSED310049EN
Local Publishable Date2025-06-18
Stocking FlagY
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameiEM3335
Energy Efficiency OptimizedFalse
Local SignallingGreen indicator light power ONYellow flashing LED accuracy checkingalarm overload
Metering Typeactive, reactive, apparent energy (signed, four quadrant)
Mounting SupportDIN rail
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeenergy meter
ReturnabilityNo
Software Versionv5.9.4
Technology Typeelectronic
Typical Current Consumptioncommunication M-bus: 2.3 mA at state 1
Pep CodeENVPEP1404007EN
Pep Verification Date2024-02-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal103.2 mm
Connections - Terminalsscrew terminals 50-50 mm²
Package Weight(Lbs)700.000 g
Warranty (In Months)18
Customs Code9028300000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C - MID, -25-55 °C - MID, -25-70 °C - IEC, -25-70 °C - IEC-25-55 °C - MID, -25-55 °C - MID, -25-70 °C - IEC
- Operating Altitude
- < 9842.52 ft (3000 m), < 9842.52 ft (3000 m)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- 9 Mm Pitches
- 14
- Environmental Disclosure
- ENVPEP1404007EN
- Ip Degree Of Protection
- IP40 front panel: conforming to IEC 60529IP20 body: conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % 50-50 °C
- Pep Verification Date
- 2024-02-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint62.4248420439569
Circularity ProfileENVEOLI1404007_V2
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1404007EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- energy meter
ETIM
- ETIM 8
- EC001506
ETIM 9EC001506
Output Attributes
- Number Of Outputs
- 1 digital (static)
Output Voltage5...40 V DC@50 mA
Input Attributes
- Analogue Input Type
- direct connection
Number Of Inputs1 digital 0...5 V/11...40 V 24 V DC
