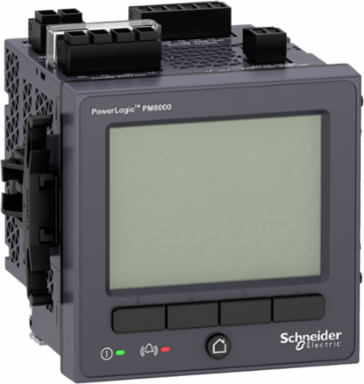

Schneider Electric METSEPM8210 PowerLogic PM8000 Power Quality Meter 512 MB Memory, 256 Samples/Cycle
- MPN: METSEPM8210
- PPN: SCH-METSEPM8210
CAD
$4758.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerLogic PM8000 Power Quality Meter 512 MB Memory, 256 Samples/Cycle
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, France, Mexico, United States
Depth77.5 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IPEthernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004
- Communication Network Type
- IPv6 (internet protocol)
Communication ServiceNTP time synchronization, SMTP e-mail notification, DHCP, RSTP support, SNMP, PTP time synchronization
Communication Port SupportETHERNETscrew terminal block RS485
Complementary Attributes
- Line Rated Current
- 10 A, 5 A, 1 A
Important Information Attributes
- Cybersecurity
- Syslog protocol support, password protection, port hardening, enable/disable communication ports, robust security logs
- Device Application
- power monitoring, WAGES metering
- Information Displayed
- voltage, current, frequency, power, energy consumption, harmonic distortion
- Market Segment
- buildings large building network management: main incomerbuildings large building network management: sub feederbuildings multi-site network management: sub feederdata center network management: sub feederhealthcare network management: sub feederindustry network management: sub feederbuildings large building cost management: billing: sub feeder, buildings small building network management: main incomer, buildings medium building network management: main incomer, buildings multi-site network management: main incomer, data center network management: main incomer, healthcare network management: main incomer, industry network management: main incomer, utility: sub feeder
- Network Frequency
- 60 Hz, 50 Hz
- Power Quality Analysis
- EN 50160 2010 compliance reportIEEE 519 2014 compliance report, IEC 61000-4-30 class S power quality measurement, up to the 63rd harmonic, harmonic distortion, waveform capture, voltage sag and swell detection, programmablity (logic and math functions)IEC 62586 power quality monitoring, disturbance direction detection, rapid voltage change
- Web Services
- customizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server
- Carbon Footprint Of The Distribution Phase [A4]
- 0.35971251144420424, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.023362676644008585
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 199 kg CO2 eq., 199.2820090070477
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- DPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2508020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2345
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Product Kit Identifier
- N
- Display Resolution
- 320 x 240 pixels QVGA
- Energy Efficiency Optimized
- False
- Installation Category
- III
- Measurement Voltage
- 57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases
- Mounting Mode
- flush-mounted
- Power Consumption In W
- 18 W
- Product Name
- PowerLogic PM8000
- Range
- PowerLogic
- Sampling Rate
- 256 samples/cycle
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Technical data:& 10Supply Voltage& 1090...415 V AC 45...65 Hz +/- 10 %& 10110...415 V DC +/- 10 %& 10Measurement voltage& 1057…400 V AC 42...69 Hz between phase and neutral& 10100…690 V AC 42...69 Hz between phases& 10Measurement current& 1050…10000 mA
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 414.348
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 96 mm
- [Us] Rated Supply Voltage
- 20...60 V DC +/- 10 %
- Package Weight(Lbs)
- 953.900 g
- Warranty (In Months)
- 18
Data Recordingdata logs, harmonics logs, waveform logs, min/max of instantaneous values, trending/forecasting, sag and swell logs, sequence of event recording, GPS synchronisation, alarm logs, event logs, time stamping, 50 data recorders
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579surge withstand conforming to IEEE C37.90.1
Isolation VoltageIII400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Measurement Accuracycurrent +/- 0.1 %, voltage +/- 0.1 %active energy +/- 0.2 %
Number Of Poles3P, 1P + N, 3P + N
Type Of Measurementapparent power per phase, rmspower factor per phase, rmscurrent, voltage, frequencyactive and reactive power total, apparent power total, power factor total, active and reactive power per phase, rms
Certificate AgencyCE, cULus, N998
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.7058587556468094, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]92 kg CO2 eq., 92.40782653185396
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310058EN_Web.pdf, PLSED310058EN
Local Publishable Date2025-07-10
Stocking FlagY
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Device Short NamePM8210
Display Typecolour TFT LCD
Frequency Measurement Range42-69 Hz
Measurement Current50-10000 mA
Memory Capacity512 MB
Mounting Supportframework
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typepower meter
ReturnabilityNo
Software Versionv6.2.4
Total Lifecycle Carbon Footprint294 kg CO2 eq.
Pep CodeENVPEP2508020EN
Pep Verification Date2025-09-15
Psr VersionPSR-0005-ed3-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Canada, CA
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %17
Width Nominal96 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9028300000
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 293.7787694826367
- Circularity Profile
- ENVEOLI2508020EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 %
- Pep Verification Date
- 2025-09-15
- Psr Version
- PSR-0005-ed3-2023 12 08
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP2508020EN
Ip Degree Of ProtectionIP54 front: conforming to IEC 60529IP30 body: conforming to IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2508020EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- power meter
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 1 pulse
Input Attributes
- Analogue Input Type
- voltage (impedance 5 MOhm)current (impedance 0.3 mOhm)
Number Of Inputs3 digital 30 V AC3 digital 60 V DC
