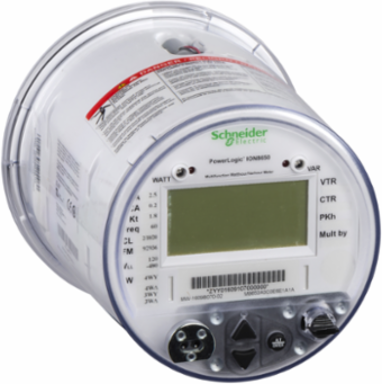

Schneider Electric M8650C0C0H6E1C3A ION8650 Power Quality Meter, 32 MB Memory, 0-24 A, 120-277 V AC
- MPN: M8650C0C0H6E1C3A
- PPN: SCH-M8650C0C0H6E1C3A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The PowerLogic ION8650 series meters are ideal for energy, power quality metering and independent power producers. These meters offer a wide versatility of feature and total performance. The meter can be the solution for transmission or distribution network. The modular, flexible ION technology architecture enables a simple, building block approach for customizing each meter to any application. Enable for the user acces to the analysis of energy, bill verification, cost allocation and more. And a number of power quality reporting. With 32 MB of memory to support data logs, alarms, RMS logging, historical logs, event logs, revenue logs, GPS synch and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization methods that include SNTP, IRIG-B, GPS ASCII (RS485) and network time set function. Providing 1024 samples per cycle with Voltage inputs of 57-277 VAC L-N / 100-480 VAC L-L; Current inputs of 1 A, 2 A, and 5 A. Wide control power range of 57-277 VAC or external power source: pigtail 65-120 VAC or 80-160 VDC. Onboard input output configurtion include 1 digital input, 2 pulse + 1 solid state + 4 relay outputs plus up to 3 dry contact sensing inputs. Multiple communication ports include: RS232/RS485, RS485, Infrared (ANSI type II) and Ethernet 10/100 BASE-T. Mechanical dimensions are 178 mm in height, 178 mm in width and 237 mm in depth, for a product weight of 7 kg. Socket form factor, setting available in 9S/29S/36S Base wiring 3-Element, 4-Wire / 2 1/2-Element, 4-Wire. With integrated display. Operating environment of -40 to +85C; Humidity rating of 5% to 95%; Altitude up to 3000 m. You can find the following accessories for ION8650: some input/output expanders, A-base adaptors and communication cable. Integration with EcoStruxure Power Operations software through multiple communication channels and protocols, Including Itron MV-90, Modbus, DNP, DLMS, IEC 61850. These meters give utilities the tools to manage complex energy supply contracts that include commitments to power quality.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- revenue and power quality meter
- Device Short Name
- ION8650C
RangePowerLogic
Complementary
- Network Frequency
- 60 Hz
- Power Quality Analysis
- up to the 31st harmonic || harmonic distortion || voltage sag and swell detection || programmablity (logic and math functions)
- Sampling Rate
- 1024 samples/cycle
- Number Of Outputs
- 2 pulse || 4 form C relay output || 1 form A triac output
- Communication Port Protocol
- DNP3 300...115200 bauds || ION 300...115200 bauds || Ansi C12.18 <= 19200 bauds || IEC 61850 ed. 2 10/100 Mbit/s || TCP/IP 10/100 Mbit/s || DLMS 300...115200 bauds || Modbus 57600 bauds || DNP3 10/100 Mbit/s || ION 10/100 Mbit/s || Modbus RTU, slave 300...115200 bauds || Modbus TCP, slave 10/100 Mbit/s || EtherGate
- Number Of Inputs
- 1 digital 0.001...100 mA 30 V DC
- Measurement Current
- 0.001-24 A
- Time Synchronisation Protocol
- IRIG-B || GPS: Truetime/Datum
- Ethernet Service
- SNMP-Traps and SYSLOG || enable/disable Ethernet protocols || enable/disable serial ports
- Compatibility Code
- ION8650C
- [Us] Rated Supply Voltage
- 120...277 V AC 47...63 Hz || 65...120 V AC 47...63 Hz || 80...160 V DC
- Outlet Standard
- American
- Web Services
- robust security logs || web server || alarm notification by e-mail || port addressing user designed
- Transmission Rate
- 10/100 Mbit/s || <= 19200 bauds || 57600 bauds || 300...115200 bauds
- Accuracy Class
- class 0.2S energy IEC 62053-23 || class 0.2 energy ANSI C12.20 || class 0.2S energy IEC 62053-22
Communication Port SupportRJ45 ETHERNET || SUB-D 9 RS485/RS232 || terminal block RS485 || infrared
Measurement Voltage57-277 V AC phase to neutral || 100-480 V AC phase to phase
Memory Capacity32 MB
Type Of Measurementcurrent || voltage || frequency || apparent power total || power factor total || apparent power per phase || power factor per phase || active power total || active power per phase || reactive power total || reactive power per phase
Power Consumption In Va24 VA
Tamperproof Of SettingsRMICAN protected
Form Designation9S 3-element 4 || 36S 2 1/2-element 4 || 29S 2 1/2-element 4
Measurement Accuracycurrent 0.1 % || voltage 0.1 % || power 0.1 % || power factor 0.1 % || frequency 0.001 Hz || energy 0.1 %
Poles Description3P + N || 1P + N || 3P
Data Recordingalarms || historical logs || sag and swell logs || event logs || harmonics logs || data logs || revenue logs || GPS synchronisation || time stamping
[In] Rated Current2 A || 5 A || 1 A
Analogue Input Typecurrent 0.01...20 A (impedance 0.05 Ohm)
Display TypeFSTN transflective LCD
Device Applicationequipment monitoring and control || tariff metering || load curtailment || demand and power factor control || co-generation and IPP monitoring || instrument transformer correction || energy pulsing and totalisation
Maximum Power Consumption In Va33 VA
Environment
- Ambient Air Temperature For Operation
- -40-85 °C
- Standards
- ANSI C12.1 || IEC 62052-11
- Net Weight
- 7 kg
- Pollution Degree
- 2
- Ambient Air Temperature For Storage
- -40-85 °C
- Mounting Support
- enclosure door
- Width
- 178 mm
- Depth
- 237 mm
Height178 mm
Electromagnetic Compatibilityelectrostatic discharge immunity test conforming to IEC 61000-4-2 || conducted RF disturbances conforming to IEC 61000-4-6 || immunity to impulse waves conforming to IEC 61000-4-12 || electrical fast transient/burst immunity test conforming to IEC 61000-4-4 || susceptibility to electromagnetic fields conforming to IEC 61000-4-3 || 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 || conducted and radiated emissions B conforming to CISPR 22
Type Of Installationindoor installation
Mounting Modesocket-mounted
Relative Humidity5-95 %
Ip Degree Of Protectionfront face IP65 || back IP51
Overvoltage CategoryIII
Operating Altitude0...3000 m
Offer Sustainability
- Environmental Disclosure
- ENVPEP110723EN
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI110703EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectiveCompliant with Exemptions
