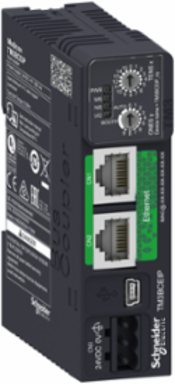

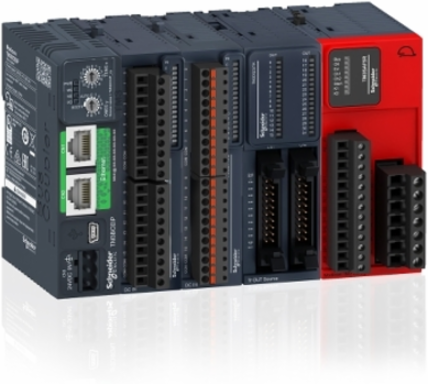

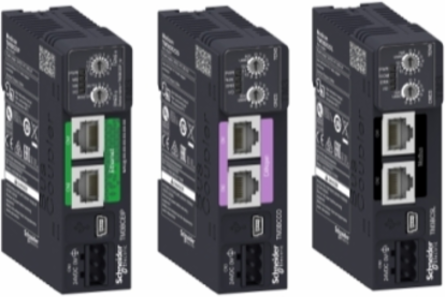

Schneider Electric TM3BCEIP Modicon TM3 Distributed I/O Module, IP20, Ethernet, 10/100 Mbps
- MPN: TM3BCEIP
- PPN: SCH-TM3BCEIP
CAD
$368.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The I/O distributed module supports daisy chain topology. It offers half duplex, full duplex and auto negotiation exchange mode with 10/100Mbps data transmission rate. This processor provides web services like web server, ethernet and web server, USB. It features 1 LED for PWR (system status), 1 LED for MS (module status), 1 LED for NS (network status) and 1 LED for I/O status signaling. It is an IP20 rated product. Its dimensions are 27mm (width) x 70mm (depth) x 96.5mm (height). It weighs 0.10kg. It is suitable for bus coupler module. It is compatible with logic controller and motion controller. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. Boost the performance of controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241, M251 and M262 logic controllers.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia, United States |
|---|
| Depth | 70 mm |
|---|
Communications & Management Attributes
| Communication Network Type | Ethernet IP, Modbus TCP, IPv4 (internet protocol) |
|---|---|
| Communication Port Protocol | Ethernet IP/Modbus TCP |
| Communication Service | Ethernet/IP adapter, Modbus TCP/IP server, RSTP (Ring topology support), SNMP, web server, DHCP client, BOOTP, address conflict detection, FTP server |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Connector Type | RJ45, mini USB port |
| Web Services | web server, Ethernet, web server, USB |
| Carbon Footprint Of The Distribution Phase [A4] | 0.023292, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.00048514 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 155 kg CO2 eq., 154.51 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Use Carbon Footprint | 154.51 |
| Weee Product Category | 4 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Current Consumption | 0.8 A 24 V DC internal supply maximum 7 expansion modules |
| Fixing Mode | by clipping locks (rail)by screws (mounting plate) |
| Network Type | DC |
| Port Ethernet | 10/100BASE-T |
| Product Or Component Type | I/O distributed module |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | Yes |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 158 kg CO2 eq. |
| Vibration Resistance | 3M4 on 35 mm DIN rail |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Potential Separation Present | false |
| Radio Standard Egprs | false |
| Pep Code | ENVPEP1712005EN |
| Pep Verification Date | 2018-06-01 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | To communicate I/Os data coming from TM3 I/O Modules connected on the right side of the TM3 Bus Controller, up to the main controller via the Fieldbus Ethernet at 3.6 W 100% of the time. |
| Functional-unit Unit | unité (unit) |
| Energy Consumption On Product Lifetime In Kwh | 315.36 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Height Nominal | 96.5 mm |
| Appendant Operation Agent (Ex Ia) | false |
| Certified For Ul Hazardous Location Group A (Acetylene) | false |
| Certified For Ul Hazardous Location Group C (Ethylene)) | false |
| Certified For Ul Hazardous Location Group E (Metal Dusts) | false |
| Certified For Ul Hazardous Location Group G (Non Conductive Dust) | false |
| Performance Level According To En Iso 13849-1 | none |
| Radio Standard Wi-fi 802.11 | false |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Interbus-safety | false |
| Wall Mounting/Direct Mounting Possible | false |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6] | 0.6445 |
| Air Pollution (M3) Manufacturing [A1-a3] | 302.15 |
| Air Pollution (M3) End Of Life [C1-c4] | 1.3863 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 41.079 |
| Global Warming (Kg.Equivalent.Co2) Total Life Cycle | 157.83 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 154.51 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 4.9883 |
| Net Use Of Fresh Water (M3) Operational Energy Use [B6] | 560.23 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 576.08 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 42.401 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 2693.5 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 45.173 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 395.17 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 392.4 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 2.0703 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 40.331 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 2693.5 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 1.8666 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 392.4 |
| Water Pollution (M3) Manufacturing [A1-a3] | 355.05 |
| Water Pollution (M3) Operational Energy Use [B6] | 6375.6 |
| Customs Code | 8517620090 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Local Signalling | 1 LED green/red PWR (System Status), 1 LED green/red MS (Module Status), 1 LED green/red NS (Network Status), 1 LED green/red I/O status |
| Certificate Agency | CE, cULus, EAC, RCM, UKCA, EU-RO MR |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.070719, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 3 kg CO2 eq., 3.2221 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Manufacturing Carbon Footprint | 3.2221 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1712005EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Bearing Track Assembly Possible | true |
| Exchange Mode | half duplex, full duplex, autonegotiation |
| Front Installation Possible | false |
| Number Of Hw Interfaces Industrial Ethernet | 1 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon TM3 |
| Software Version | EIME v5.7.0.3 |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Topology | daisy chain |
| Transmission Rate | 10/100 Mbit/s |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 20.4-28.8 V |
| System Accessory | true |
| Radio Standard Lte | false |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Indonesia |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Recyclability Potential In % | 8 |
| Width Nominal | 27 mm |
| Appendant Operation Agent (Ex Ib) | false |
| Certified For Ul Hazardous Location Group B (Hydrogen) | false |
| Certified For Ul Hazardous Location Group D (Propane)) | false |
| Certified For Ul Hazardous Location Group F (Carbonaceous Dust) | false |
| Io-link Master Present | false |
| Rack-assembly Possible | true |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | false |
| Supporting Protocol For Tcp/Ip | false |
| Carbon Footprint (Kg Co2 Eq Total Life Cycle) | 157.83 |
| Package Weight(Lbs) | 178.000 g |
| Warranty (In Months) | 18 |
| Air Pollution (M3) Total Life Cycle | 6954.6 |
| Air Pollution (M3) Operational Energy Use [B6] | 6650.1 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle | 1795.4 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1753.8 |
| Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3] | 3.2221 |
| Hazardous Waste Disposed Of (Kg) Total Life Cycle | 5.2808 |
| Net Use Of Fresh Water (M3) Total Life Cycle | 560.27 |
| Non-hazardous Waste Disposed Of (Kg) Total Life Cycle | 576.9 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 2736.4 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4] | 0.3289 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle | 3131.6 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 3085.9 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 2.7715 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 2.0703 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 2734.4 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4] | 0.3289 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 1.8666 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 393.31 |
| Water Pollution (M3) Total Life Cycle | 6737.6 |
| Water Pollution (M3) Distribution [A4] | 3.8304 |
| Water Pollution (M3) End Of Life [C1-c4] | 3.0216 |
Environment Attributes Main
| Product Compatibility | logic controller, motion controller |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -10-60 °C-10-60 °C |
| Circularity Profile | ENVEOLI1712005EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1712005EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 157.83 |
| Ambient Air Temperature For Storage | -25-70 °C-25-70 °C |
| Environmental Disclosure | ENVPEP1712005EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2018-06-01 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | I/O distributed module |
|---|
| Range Of Product | Modicon TM3 |
|---|
ETIM
| ETIM 8 | EC001604 |
|---|
| ETIM 9 | EC001604 |
|---|
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$368.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$368.83/ EA
Loading add to cart quantity...
