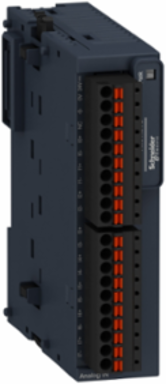

Schneider Electric TM3TI8TG Modicon TM3 Analog Input Module, 8 Inputs, 24V DC, IP20, 0.1 kg
- MPN: TM3TI8TG
- PPN: SCH-TM3TI8TG
CAD
$457.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modicon TM3 Analog Input Module, 8 Inputs, 24V DC, IP20, 0.1 kg
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Japan, Singapore, United States
Depth70 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cross Talk
- <= 1 LSB, <= 1 LSB
- Lsb Value
- 0.1 °C, 1 Ohm
- Typical Current Consumption
- 30 mA 24 V DC45 mA 5 V DC, 40 mA 5 V DC
- Non-linearity
- +/- 0.2 %FS, +/- 0.2 %FS
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.47040137511005103, 0.5 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 13 kg CO2 eq., 12.711334999066082
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Conversion Time
- 100 ms + 100 ms per channel + 1 controller cycle time
- Front Installation Possible
- false
- Insulation
- between output and supply 1500 V ACbetween output and internal logic 500 V AC
- Marking
- CE
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon TM3
- Returnability
- No
- Shock Resistance
- 15 gn 11 ms
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 41 kg CO2 eq.
- Vibration Resistance
- 3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Fieldbus Connection Over Separate Bus Coupler Possible
- false
- Pep Code
- ENVPEP1402009EN
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; China, CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; China, CN
- Height Nominal
- 90 mm
- Appendant Operation Agent (Ex Ia)
- false
- Certified For Ul Hazardous Location Group A (Acetylene)
- false
- Certified For Ul Hazardous Location Group C (Ethylene))
- false
- Certified For Ul Hazardous Location Group E (Metal Dusts)
- false
- Certified For Ul Hazardous Location Group G (Non Conductive Dust)
- false
- Performance Level According To En Iso 13849-1
- none
- Radio Standard Wi-fi 802.11
- false
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Interbus-safety
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 185.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Connectionand supply, 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Certificate AgencyCE, UKCA, RCM, EAC, cULus, cULus HazLoc
Carbon Footprint Of The Distribution Phase [A4]0.04393186640076018, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.00518087971352722
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]27 kg CO2 eq., 27.321139884613935
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1402009EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Bearing Track Assembly Possiblefalse
Electromagnetic Emissionradiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Immunity To Microbreaks10 ms
Local Signalling1 LED green PWR
Network TypeDC
Product Or Component Typeanalog input module
Radio Standard Gprsfalse
Radio Standard Umtsfalse
Repeat Accuracy+/-0.5 %FS+/-0.5 %FS
Sampling Duration100 ms
Software Versionv6.1
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Temperature Drift+/- 0.01 %FS/°C+/- 0.01 %FS/°C
Type Of Cabletwisted shielded pairs cable <30 m input
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Dc Supply Voltage24-24 V
System Accessoryfalse
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Taiwan, TW
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential In %3
Width Nominal23.6 mm
Appendant Operation Agent (Ex Ib)false
Certified For Ul Hazardous Location Group B (Hydrogen)false
Certified For Ul Hazardous Location Group D (Propane))false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)false
Io-link Master Presentfalse
Rack-assembly Possiblefalse
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Ipfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation)
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 40.55198900490436
- Circularity Profile
- ENVEOLI1402009EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 10-95 % without condensation
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Storage-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1402009EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1402009EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- analog input module
Range Of ProductModicon TM3
ETIM
- ETIM 8
- EC001596
ETIM 9EC001596
Input Attributes
- Analogue Input Resolution
- 16 bits, 15 bits + sign
- Analogue Input Number
- 8
Analogue Input Typethermocouple - 200...1000 °C thermocouple Jthermocouple - 200...1300 °C thermocouple Kthermocouple 0...1760 °C thermocouple R, thermocouple 0...1760 °C thermocouple Sthermocouple 0...1820 °C thermocouple Bthermocouple - 200...400 °C thermocouple T, thermocouple - 200...1300 °C thermocouple Nthermocouple - 200...800 °C thermocouple E, thermistor -90...150 °C NTC 10kthermistor 100...10000 Ohm PTC
Input Impedance>= 1 MOhm>= 1 MOhm
