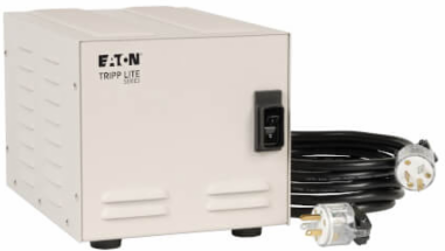

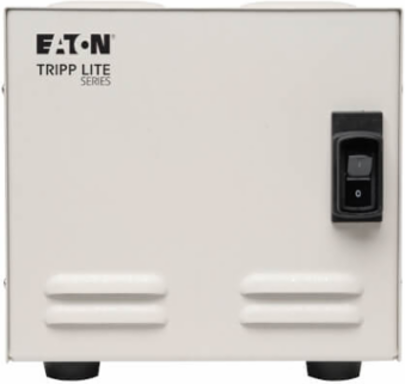

Tripp Lite IS1800HG 120V 1800W Medical-Grade Isolation Transformer with 6 Hospital-Grade Outlets
- MPN: IS1800HG
- UPC: 037332116222
- PPN: TRP-IS1800HG
CAD
$1760.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
120V 1800W Medical-Grade Isolation Transformer with 6 Hospital-Grade Outlets
Features
- Complete line isolation and noise filtering
- Hospital-grade plug and receptacles
- Lowers cumulative leakage current of connected equipment to under 100 μA
- Floating AC output prevents noise coupling
- TAA-compliant
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Voltage
- 120V AC, 60Hz
- Amperage
- 15A
- Input Plug

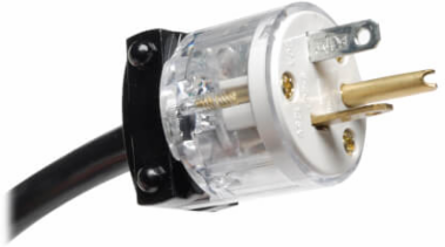

- NEMA 5-20P Hospital Grade
- Noise Suppression Rating
- 35-65 dB
- Efficiency
- 96%
- Let-through Voltage (Combination Wave)
- L-N: 250V, L-G: 250V, N-G: 0.5V
- Over Current Protection
- 1x thermal, 2 pole, 10 amp
- Weight
- 59.1 lbs
- Form Factor
- Tower
- Material
- All-metal housing
- Warranty
- 2-year limited warranty
Wattage1800W

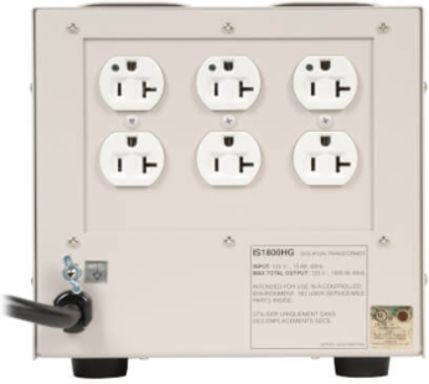

Output Receptacles6 NEMA 5-20R Hospital Grade
Input Cord Length10 ft
Leakage CurrentLess than 100 microamps
Total Harmonic DistortionLess than 1%
Let-through Voltage (Ring Wave)L-N: 20V, L-G: 20V, N-G: 0.5V
Dimensions7.75 x 8.25 x 12.25 in
Cooling MethodConvection
Transformer TypeHospital Grade, low impedance transformer-based line isolation transformer
CertificationsUL 60601-1 Medical Grade, TAA-compliant
