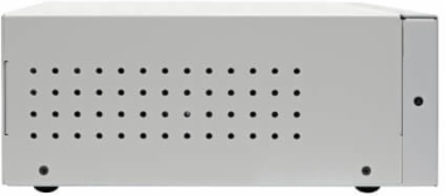

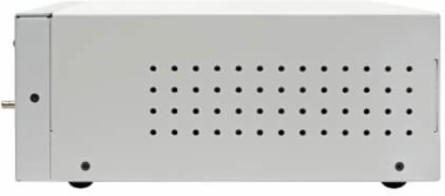

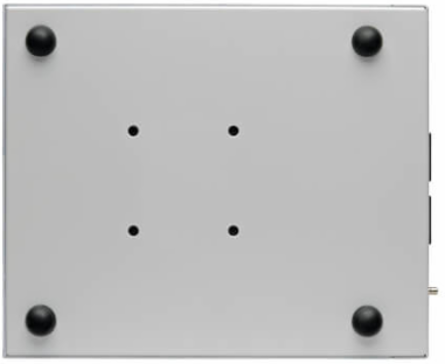

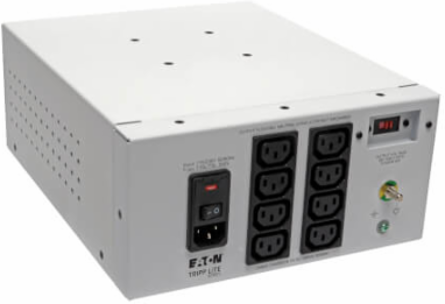

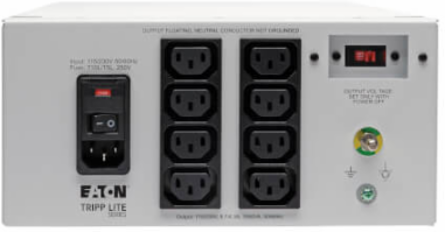

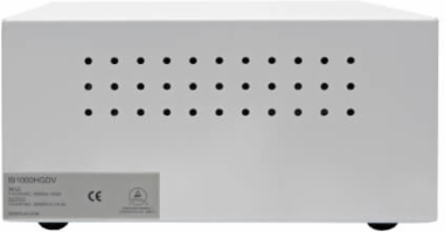

Tripp Lite IS1000HGDV Medical-Grade Isolation Transformer 1000W 115/230V with 8 C13 Outlets
- MPN: IS1000HGDV
- UPC: 037332200020
- PPN: TRP-IS1000HGDV
CAD
$1984.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Isolator Series Dual-Voltage 115/230V 1000W 60601-1 Medical-Grade Isolation Transformer, C14 Inlet, 8 C13 Outlets, TAA
Features
- (2) Fuse sets included for 115V and 230V operation
- Input/output cable selector data sheet included
- Owner's manual included
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 1000W (VA)
- Output Voltage
- 115V/230V (Selectable by Output Switch, Step Up or Step Down)
- Output Current Capacity
- 8.7A @ 115V, 4.3A @ 230V
- Surge Protection
- 240 Joules
- Leakage Current
- Max 80 A AC
- Transformer Type
- Medical Grade, Low Impedance Toroidal Isolation (Line Isolation, Step Up or Step Down)
- Efficiency
- 96%
- Unit Dimensions
- 5.13 x 9.84 x 11.81 in (13.03 x 24.99 x 30.00 cm)
- Operating Temperature Range
- 0 C to 40 C (32 F to 104 F)
- Operating Humidity Range
- 5% to 95% RH (Non-Condensing)
- Material
- Sheet Metal Cabinet
- Output Isolation Transformer
- Toroid with AC output floating with respect to Earth Ground POAG Connector and Earth Ground Stud
- Color
- White
Input Voltage115/230V (Selectable by Fuse Installation, Operating Range 100-125V or 200-250V)
Input Frequency50/60 Hz
Input Current10A @ 115V, 5A @ 230V
Surge Let-Through Voltage0.5V Common Mode
Noise Suppression35-65 dB
Over Current Protection2 x 10A @ 115V, 2 x 5A @ 230V (Fuses included)
Output Outlets8 C13
Unit Weight30.25 lbs (13.72 kg)
Storage Temperature Range-15 C to 50 C (5 F to 122 F)
Operating Elevation0 to 3000 m (0 to 10,000 ft)
Cooling MethodConvection
CertificationsANSI/AAMI ES60601-1:2005+A2+A1, IEC60601-1 3rd Edition +A1, cAN/CSA-C22.2 No. 60601-1:14, CE, NOM
Warranty2-year limited warranty
