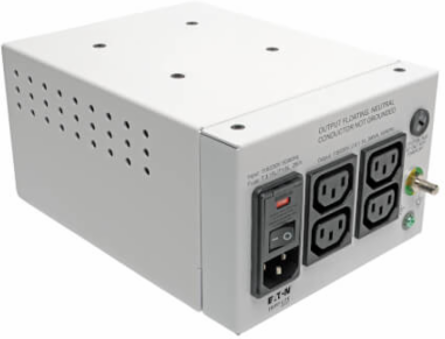

Tripp Lite IS300HGDV Medical-Grade Isolation Transformer 300W 115/230V with 4 C13 Outlets
- MPN: IS300HGDV
- UPC: 037332199980
- PPN: TRP-IS300HGDV
CAD
$1516.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Isolator Series Dual-Voltage 115/230V 300W 60601-1 Medical-Grade Isolation Transformer, C14 Inlet, 4 C13 Outlets, TAA
Features
- (2) Fuse sets included for 115V and 230V operation
- Input/output cable selector data sheet included
- Owner's manual included
Documentation & Downloads
Specifications
Additional
| Output (VA) | 300 VA |
|---|---|
| Nominal Input Voltage | 115/230 VAC (100-125VAC or 200-250VAC range selectable by fuse) |
| Input Current | 3.15 A @ 115 V, 1.6 A @ 230 V |
| AC Suppression Joule Rating | 240 J |
| Output Voltage Regulation (Line Mode) | 5.2% |
| Operating Elevation | 0-3000 m (0-10,000 ft) |
| Unit Weight | 12.35 lbs (5.60 kg) |
| Cooling Method | Convection |
| Leakage Current | Max AC Leakage Current less than 50 A |
| Storage Temperature Range | -15 to 50 C (5 to 122 F) |
| Power Input Receptacle | IEC-320-C14 |
| Certifications | ANSI/AAMI ES60601-1:2005+A2+A1, IEC60601-1 3rd Edition +A1, cAN/CSA-C22.2 NO. 60601-1:14, CE, NOM |
| Noise Suppression Rating | 35-65 dB |
| Color | White |
| UPC Code | 037332199980 |
| Output (Watts) | 300 W |
|---|---|
| Nominal Input Frequency | 50/60 Hz |
| Maximum Surge Amps | 70 A |
| Output Nominal Voltage | 115V/230V selectable (step-up, step-down, or pass-through) |
| THDi | Less than 1% |
| Unit Dimensions | 4.33 x 5.91 x 7.87 in |
| Material of Construction | Sheet Metal Cabinet |
| Transformer Type | Medical Grade, Low Impedance Toroid - Line Isolation (Pass Through, Step Up or Step Down) |
| Operating Temperature Range | 0 to 40 C (32 to 104 F) |
| Operating Humidity Range | 5% to 95% RH (non-condensing) |

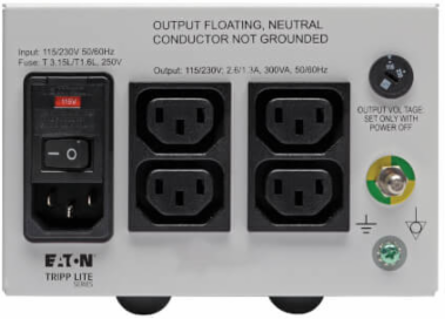

| Output Receptacles | 4 x C13 |
| IEEE587 Cat. A Ringwave Let-Through | Reduced to 0.5 V Common Mode |
| Over Current Protection | 2x 3.15 A @ 115 V and 2x 1.6 A @ 230 V fuses included |
| Operating Elevation | 0-3000 m (0-10,000 ft) |
| Warranty | 2-year limited warranty |
