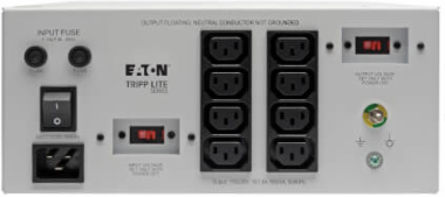

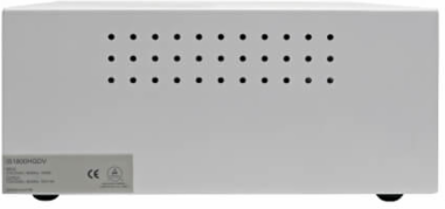

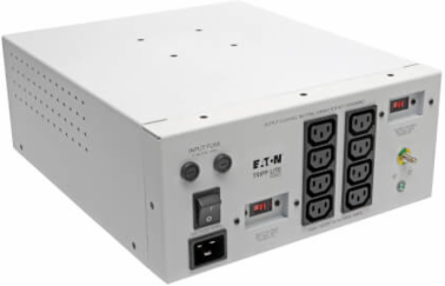

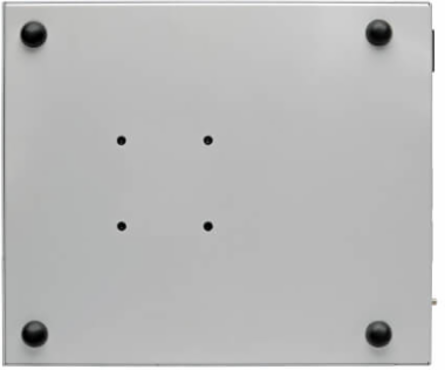

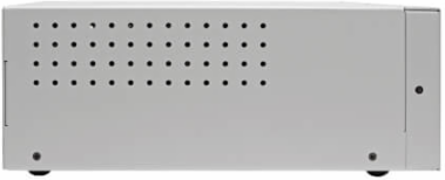

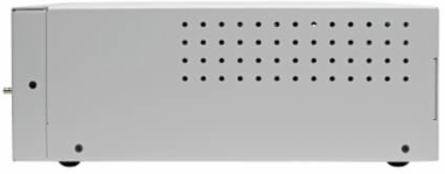

Tripp Lite IS1800HGDV Medical-Grade Isolation Transformer 1800W 115/230V, 8 C13 Outlets
- MPN: IS1800HGDV
- UPC: 037332200037
- PPN: TRP-IS1800HGDV
CAD
$2905.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Isolator Series Dual-Voltage 115/230V 1800W 60601-1 Medical-Grade Isolation Transformer, C20 Inlet, 8 C13 Outlets, TAA
Features
- (2) Fuse sets included for 115V and 230V operation
- Input/output cable selector data sheet included
- Owner's manual included
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 1800W
- Output Voltage
- 115/230V (Selectable by Output Switch)
- Isolation Transformer
- Medical Grade, Low Impedance Toroid - Line Isolation
- Maximum Surge Amps
- 100A
- Noise Suppression Rating
- 35-65 dB
- Fuse Rating
- 2 x 15A @ 115V, 2 x 8A @ 230V
- Voltage Regulation
- 3.6%
- THDi
- Less than 1%
- Power Input Receptacle
- IEC-320-C20
- Storage Temperature Range
- -15 to 50 C (5 to 122 F)
- Operating Humidity Range
- 5% to 95% RH, non-condensing
- Unit Dimensions (HxWxD)
- 5.51 x 11.81 x 13.78 in
- Material
- Sheet Metal Cabinet
- Compliance
- Medical Grade
Input Voltage115/230 VAC
Input Frequency50/60 Hz
Surge Protection240 Joules
Leakage CurrentMax 80 A
Noise ReductionEMI/RFI line noise reduced to 0.5V common mode
Overload ProtectionAutomatic outlet shutdown with fuse protection
Efficiency96%
Output Receptacles8 C13
Operating Temperature Range0 to 40 C (32 to 104 F)
Operating Elevation0 to 3000 m (0 to 10,000 ft)
Cooling MethodConvection
Unit Weight51.21 lbs (23.23 kg)
CertificationsANSI/AAMI ES60601-1:2005+A2+A1, IEC60601-1 3rd Edition +A1, CAN/CSA-C22.2 No. 60601-1:14, CE, NOM
ColorWhite
