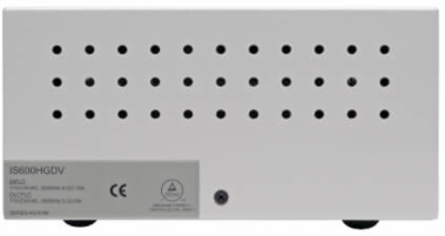

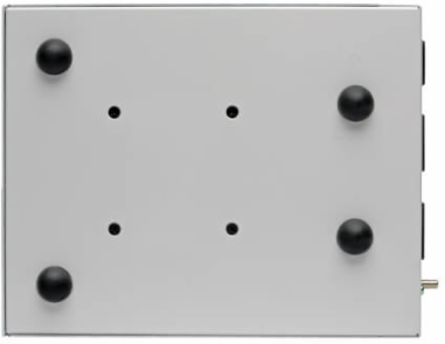

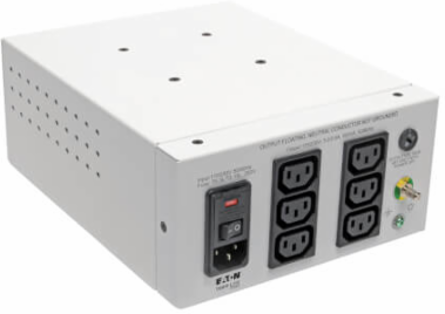

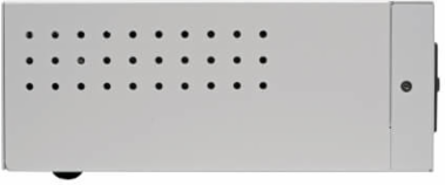

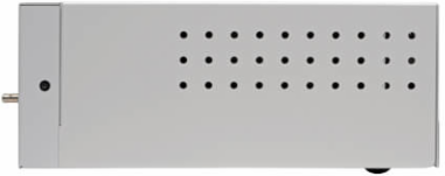

Tripp Lite IS600HGDV Medical-Grade Isolation Transformer 600W 115/230V with 6 C13 Outlets

Medical-Grade Isolation Transformer 600W 115/230V with 6 C13 Outlets
Medical-Grade Isolation Transformer 600W 115/230V with 6 C13 Outlets
Medical-Grade Isolation Transformer 600W 115/230V with 6 C13 Outlets
Medical-Grade Isolation Transformer 600W 115/230V with 6 C13 Outlets
Medical-Grade Isolation Transformer 600W 115/230V with 6 C13 Outlets
Medical-Grade Isolation Transformer 600W 115/230V with 6 C13 Outlets
  • MPN: IS600HGDV
  • UPC: 037332200006
  • PPN: TRP-IS600HGDV

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1763.31/ EA

Description

Transformer with full CAN/ES/IEC/EN 60601-1 listing offers line isolation, step-up and step-down capabilities, and continuous noise filtering in protecting medical electronic equipment used in patient-care vicinities.

Features

  • Protects sensitive equipment from EMI/RFI line noise and surges
  • Cumulative leakage current less than 50 µA
  • Automatically shuts down all outlets in case of overload
  • Offers complete isolation from input AC mains power
  • Ideal for use in any industrial, network or medical environment
  • 2-year limited warranty
  • Full CAN/ES/IEC/EN 60601-1 Medical-Grade Listing with C14 Inlet and 6 C13 Outlets
  • Selectable 115/230V Input/Output Voltage Suitable for Most Applications
  • Protects Connected Equipment from Dangerous Spikes, Surges and Line Noise

Specifications

Power Capacity
600W
Output Voltage
115/230V (Selectable, Step-up, Step-down, Pass-through)
Surge Protection
240 Joules
Leakage Current
< 50 µA
Total Harmonic Distortion
< 1%
Overcurrent Protection
2 x 6A @ 115V, 2 x 3.15A @ 230V (Fuses included)
Transformer Type
Medical Grade, Low Impedance Toroid
Input Receptacle
IEC-320 C14
Cooling Method
Convection
Unit Weight
20.38 lbs
Operating Temperature Range
0 to 40 °C (32 to 104 °F)
Operating Humidity Range
5% to 95% RH (Non-Condensing)
Color
White
Warranty
2-year limited warranty
Input Voltage115/230 VAC
Frequency50/60 Hz
Maximum Surge Current70A
Surge Let-Through Voltage0.5 V Common Mode
Output Voltage Regulation4.1%
Noise Suppression Rating35-65 dB
IsolationFloating w.r.t Earth Ground; Includes POAG and Earth Ground Stud

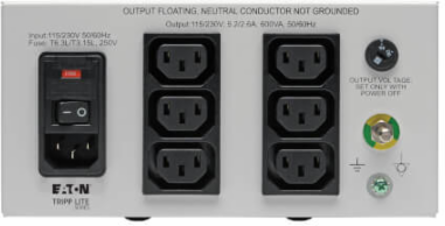

Output Receptacles6 x IEC-320 C13
Unit Dimensions4.33 x 7.87 x 9.84 in
MaterialSheet Metal Cabinet
Storage Temperature Range-15 to 50 °C (5 to 122 °F)
Operating Elevation0 to 3000 m (0 to 10,000 ft)
ComplianceANSI/AAMI ES60601-1:2005+A2+A1, IEC60601-1 3rd Edition+A1, cAN/CSA-C22.2 No. 60601-1:14, CE, NOM
