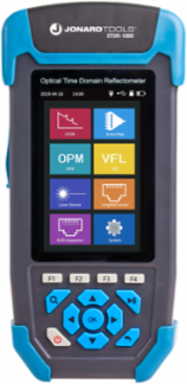

Jonard Tools OTDR-1000 Jonard Tools OTDR-1000 Multi-Function OTDR
- MPN: OTDR-1000
- UPC: 810053350669
- PPN: JTL-OTDR-1000
CAD
$2667.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Jonard Tools’ Mini Pro OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses.
Features
- Includes 8 different functions for testing and evaluating fiber optic and network cables
- Bright 3.5” color LCD screen makes it quick and easy to evaluate data
- Rubberized hard plastic case is shock-proof and drop-proof for maximum durability
- 600 MB Internal storage with MicroSD/TF card slot for additional memory
- Built-in rechargeable lithium ion battery provides power on-the-go
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Length
- 7.48 Inch
- Fiber Type
- G.652 SingleMode Fiber
- Dynamic Range
- 24dB/22dB
- Event Blind Zone
- 3m
- Test Range
- 500m~60km
- Range Accuracy
- ±（1m+Sampling Interval +0.005％×Test Distance）
- # of Sampling Points
- 16k~128k
- Reflection Accuracy
- ±3dB
- Laser Safety Level
- Class Ⅱ level
- Included Connectors for OTDR
- FC, SC, LC (PC/UPC)
Wavelengths1310nm/1550nm±20nm
Width3.14 Inch
Height10.43 Inch
Weight2 Lbs.
ATT Blind Zone8m
Pulse Width3ns~10us
Loss Accuracy±0.2dB/dB
Sampling Resolution0.05m~8m
Data StorageInternal：≥600；External：TF Card
File FormatSOR Standard File Format
