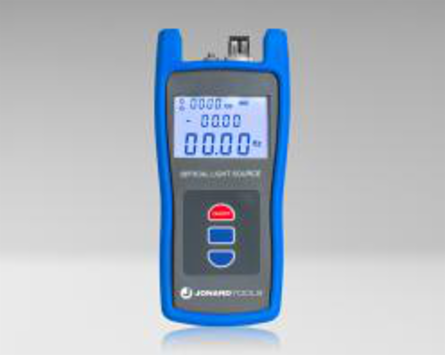

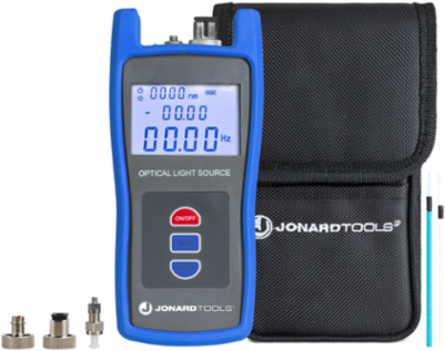

Jonard Tools FLS-50 Jonard Tools FLS-50 Fiber Optic Light Source with FC/SC/LC Adapters
- MPN: FLS-50
- UPC: 811490018655
- PPN: JTL-FLS-50
CAD
$539.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

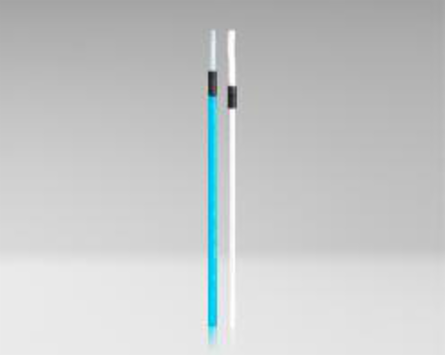

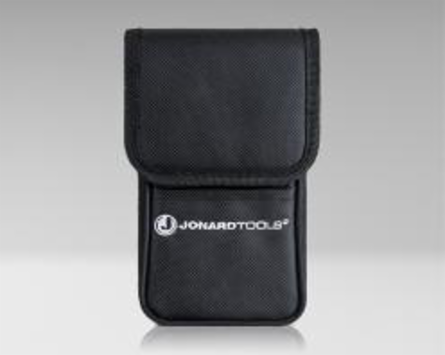

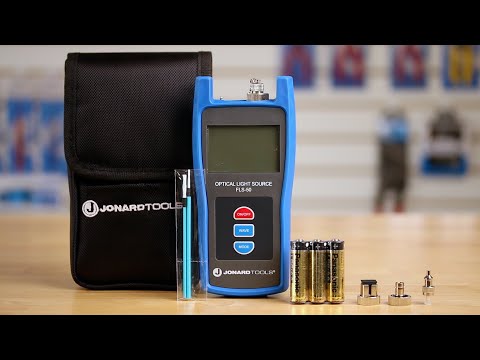

Includes: Fiber Optic Light Source FC Adapter LC Adapter SC Adapter (2) Cleaning Swabs (3) AA Batteries (required for operation) Storage Pouch
Features
- Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors
- Highly stable output power and wavelengths
- Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 N-m and 1550 nm wavelengths
- Flush button design makes it easy to use and prevents dust from entering the unit
- Shatter-resistant sleeve protects the light source from falls or other damage
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Length
- 2.5 Inch
- Width
- 5.25 Inch
- Typical Output Power
- -7 dBm
- Output Stability
- ± 0.05 dB / 15 min or ± 0.1 dB / 8 hr
- Spectral Width
- ≤ 10 nm
- Battery Type
- (3) AA 1.5V alkaline batteries
Connector Types1.25 mm LC and 2.5 mm FC/SC
Wavelengths (nm)1310, 1550
Height9.75 Inch
Weight1.15 Lbs.
Operating Temperature-10 ± 60°C
Modulation FrequenciesCW / 270 Hz / 1 kHz / 2 kHz
Storage Temperature-25 ± 70°C
