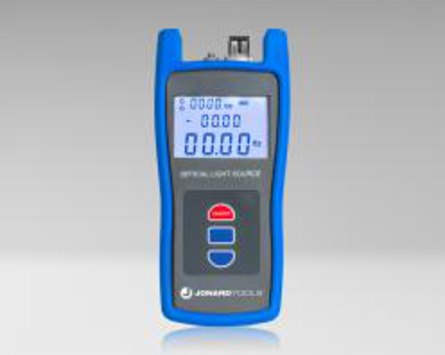

Jonard Tools FLS-55 Jonard Tools FLS-55 Multimode & Singlemode Fiber Optic Light Source with FC/LC/SC (PC/UPC) Adapters
- MPN: FLS-55
- UPC: 810053350195
- PPN: JTL-FLS-55
CAD
$1091.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

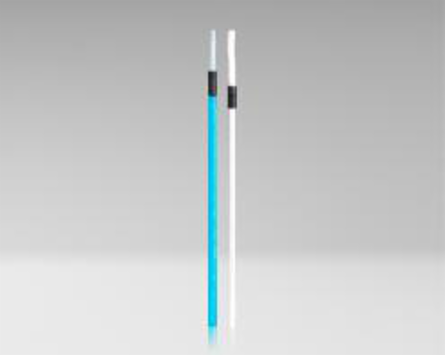

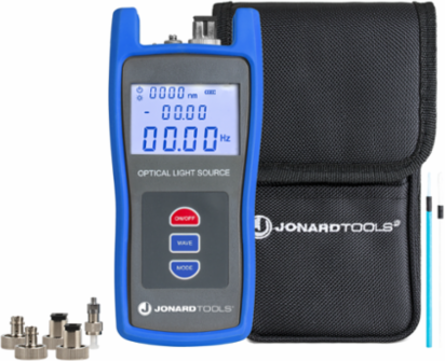

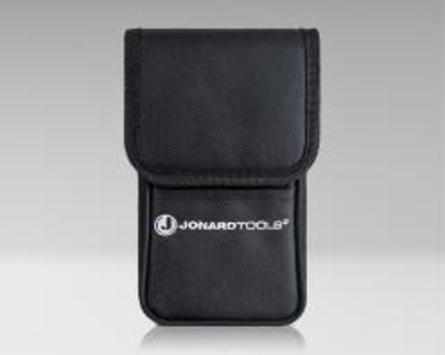

Includes: Fiber Optic Light Source (MM/SM) FC Adapter LC Adapter SC Adapter (2) Cleaning Swabs (3) AA Batteries (required for operation) Storage Pouch
Features
- Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors
- Highly stable output power and wavelengths
- Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 850/1300 nm (multimode) and 1310/1550 nm (singlemode) wavelengths
- Flush button design makes it easy to use and prevents dust from entering the unit
- Shatter-resistant sleeve protects the light source from falls or other damage
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Length | 2.5 Inch |
| Connector Types | 1.25 mm LC and 2.5 mm FC/SC |
| Wavelengths (nm) | 850, 1300, 1310, 1550 |
| Weight | 1.15 Lbs. |
| Operating Temperature | -10 ± 60°C |
| Modulation Frequencies | CW / 270 Hz / 1 kHz / 2 kHz |
| Storage Temperature | -25 ± 70°C |
| Fiber Types | Multimode & Singlemode |
|---|---|
| Width | 5.25 Inch |
| Height | 9.75 Inch |
| Typical Output Power | -7 dBm |
| Output Stability | ± 0.05 dB / 15 min or ± 0.1 dB / 8 hr |
| Spectral Width | ≤ 10 nm |
| Battery Type | (3) AA 1.5V alkaline batteries |
