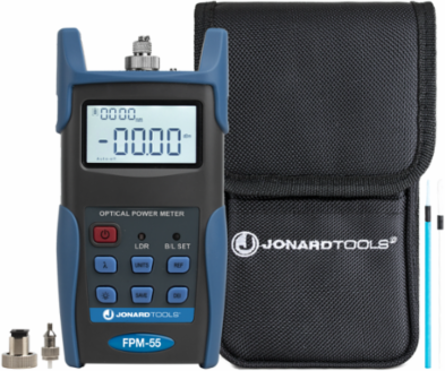

Jonard Tools FPM-55 Jonard Tools FPM-55 Fiber Optic Power Meter w/ Data Storage (-50 to +26 dBm) & FC/SC/LC Adapters
- MPN: FPM-55
- UPC: 810053350416
- PPN: JTL-FPM-55
CAD
$685.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

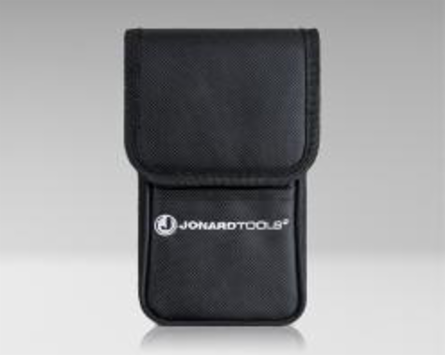

The Jonard Tools Fiber Optic Power Meter with Data Storage is the perfect power meter for measuring and recording both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following: Auto-off function can be turned on or off Includes carrying case, instruction manual, software (available for download on this product page), and FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool The FC/SC adapters are for APC/PC/UPC connectors The LC adapter is for PC/UPC connectors only
Features
- Measures a wide variety of wavelengths from 850-1650 nm, with a mere 0.01 dB resolution
- Measures 8 preset calibrated wavelengths with high precision to determine absolute or relative power
- Intelligent backlight control adjusts the screen brightness automatically to reduce power consumption
- Stores up to 1,000 data entries which can be downloaded via USB
- Reference power level can be set up and stored via included software
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Connector Types
- FC, SC (APC/PC/UPC) & LC (PC/UPC)
- Width
- 5.25 Inch
- Height
- 9.75 Inch
- Weight
- 0.75 Lbs.
- Multi Mode Range
- 850, 1300 nm, ≤ ± 0.8 dB
- Resolution
- 0.01 dB
- Battery Type
- (3) AA batteries
Length2.5 Inch
Calibrated Wavelengths (nm)850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Detector TypeInGaAs
Measurement Range-50 dBm to +26 dBm
Single Mode Range980, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB
Data Storage Capacity1000 entries
Operating Time200 hours (without backlight)
