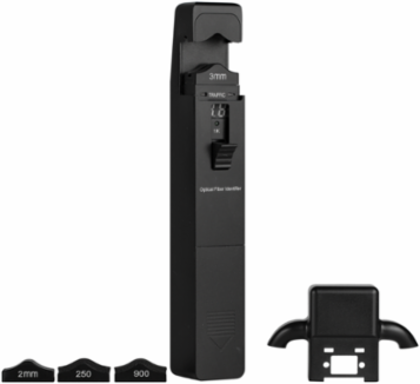

Jonard Tools OFI-50 Jonard Tools OFI-50 Optical Fiber Identifier
- MPN: OFI-50
- UPC: 811490010901
- PPN: JTL-OFI-50
CAD
$979.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Click Here for a full list of our 2021 Product Winners
Features
- Easy-to-use one key operation
- Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with an audible warning.
- The display shows you the relative core power clearly
- Includes 3 mm, 2 mm, 900 nm (0.90 mm) and 250 nm (0.25 mm) adapters for different sized fiber optic cables
- Included sunshade protects the fiber optic cable from interference to provide more accurate readings
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Identified Wavelength Range | 800-1700 nm |
| Identified Signal Type | CW, 270Hz±5%，1kHz±5%，2kHz±5% |
| Detector Type | Ø1mm InGaAs 2pcs |
| Weight | 0.719 Lbs. |
| Signal Direction Test Range | -46~+10 dBm (1310 nm, CW/0.9 mm bare fiber), -50~+10 dBm (1550 nm, CW/0.9 mm bare fiber) |
| Insertion Loss | 0.8 dB (1310nm), 2.5 dB (1550nm) |
| Length | 9.84 Inch |
|---|---|
| Width | 3.15 Inch |
| Height | 2.09 Inch |
| Adapter Type | Ø0.25 (Applicable for Bare Fiber), Ø0.9, Ø2.0 , and Ø3.0 |
| Signal Direction | Left & Right LED |
| Signal Frequency Display | 270 Hz, 1 kHz, 2 kHz |
| Battery Type | 9V |
