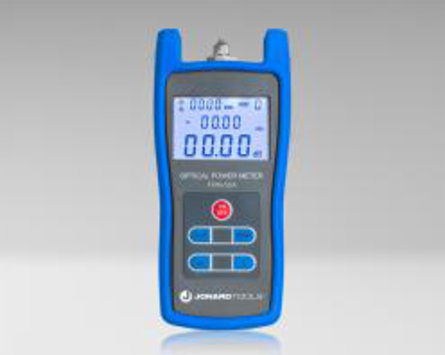

Jonard Tools FPM-50A Jonard Tools FPM-50A Fiber Optic Power Meter With VFL-25125 LC Adapter

Jonard Tools FPM-50A Fiber Optic Power Meter With VFL-25125 LC Adapter
Jonard Tools FPM-50A Fiber Optic Power Meter With VFL-25125 LC Adapter
Jonard Tools FPM-50A Fiber Optic Power Meter With VFL-25125 LC Adapter
Jonard Tools FPM-50A Fiber Optic Power Meter With VFL-25125 LC Adapter
Jonard Tools FPM-50A Fiber Optic Power Meter With VFL-25125 LC Adapter
  • MPN: FPM-50A
  • UPC: 811490019966
  • PPN: JTL-FPM-50A

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$444.78/ EA

Description

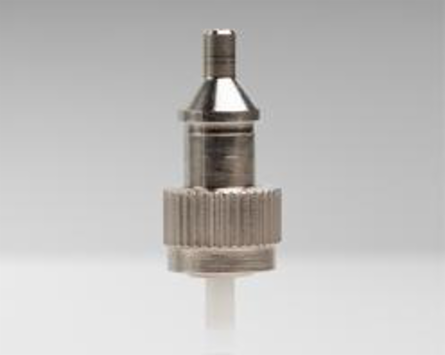

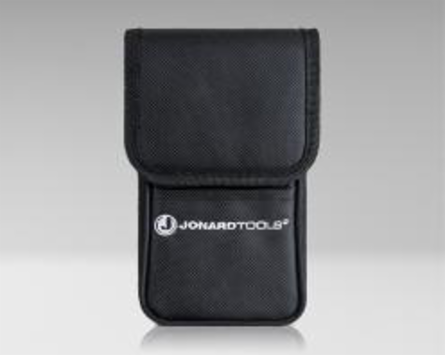

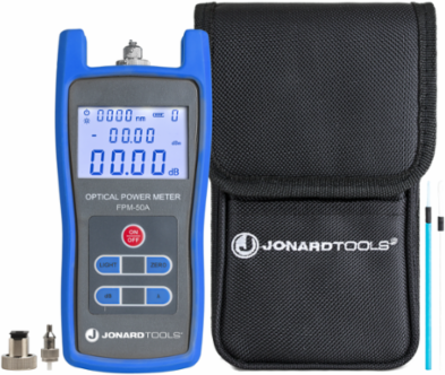

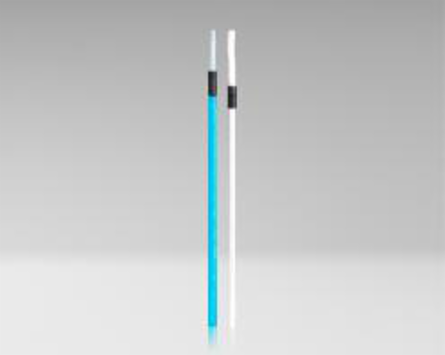

Includes: Fiber Optic Power Meter Instruction Manual Protective Cover (3) AA Batteries (required for operation) (2) Cleaning Swabs FC Adapter LC Adapter SC Adapter Nylon Carry Case

Features

  • Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
  • Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
  • Special function of the unit allows the device to be manually calibrated as needed
  • LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
  • Dust-proof button design and shatter-resistant sleeve protect the tool to last a lifetime

Specifications

Specifications

Country of Origin
China
Length
2.5 Inch
Width
5.25 Inch
Height
9.75 Inch
Weight
1.5 Lbs.
Multi Mode Range
850, 1300 nm, ≤ ± 0.8 dB
Operating Time
≥ 130 hours
Connector TypesFC, SC (APC/PC/UPC) & LC (PC/UPC)
Calibrated Wavelengths (nm)850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Detector TypeInGaAs
Measurement Range-50 dBm to +26 dBm
Single Mode Range850, 980, 1300, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB
Resolution0.01 dB
Battery Type(3) AA batteries
