Jonard Tools FPM-70 Jonard Tools FPM-70 Fiber Optic Power Meter (-70 to +6 dBm) with FC/SC/LC Adapters
- MPN: FPM-70
- UPC: 810053350478
- PPN: JTL-FPM-70
CAD
$444.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

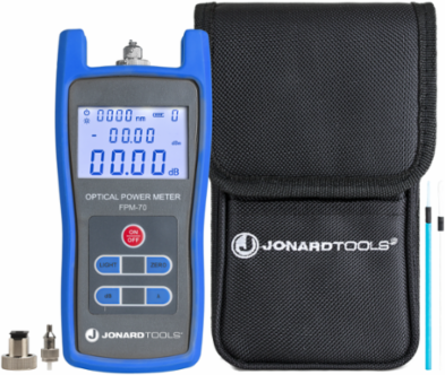

Includes: Fiber Optic Power Meter (-70 dBm to +6 dBm) FC Adapter (PC/UPC/APC) SC Adapter (PC/UPC/APC) LC Adapter (PC/UPC) (2) Cleaning Swabs Protective Cover Nylon Carry Case (3) AA Batteries (required for operation) Instruction Manual
Features
- Power measurement range of -70 dBm to +6 dBm, perfect for long distance or long haul telecom, coax, and fiber optic cables
- Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
- Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
- Special function of the unit allows the device to be manually calibrated as needed
- Includes FC and SC adapters to connect to PC/UPC/APC FC and SC connectors
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Length
- 2.5 Inch
- Width
- 5.25 Inch
- Height
- 9.75 Inch
- Measurement Range
- -70 dBm to +6 dBm
- Multi Mode Range
- 850, 1300 nm, ≤ ± 0.8 dB
- Operating Time
- ≥ 130 hours
Connector TypesFC, SC (APC/PC/UPC) & LC (PC/UPC)
Calibrated Wavelengths (nm)850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Detector TypeInGaAs
Weight1.17 Lbs.
Single Mode Range980, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB
Resolution0.01 dB
Battery Type(3) AA batteries
