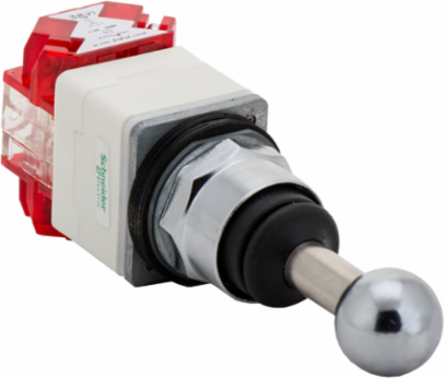

Schneider Electric 9001K35H2 Joystick Controller, 30mm, 4 Directions, Spring Return to Center, IP66

  • MPN: 9001K35H2
  • UPC: 785901028284
  • PPN: SCH-9001K35H2
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $510.72

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony 9001K, joystick controller has 5-positions, operates with spring return to center position mechanism. It has a chromium-plated metal bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Mexico

    Physical Attributes

    Size
    30 mm

    Complementary Attributes

    Rated Breaking Capacity
    3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Type Of Operator
    spring return, to centre spring return
    [Icm] Rated Short-circuit Making Capacity
    12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA
    Carbon Footprint Of The Distribution Phase [A4]
    0.16444437942218604, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0022434896703396124, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    0 kg CO2 eq., 0
    Local Publishable Date
    2026-03-25
    Stocking Flag
    N
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2503027EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Bezel Material
    metal
    Contacts Material
    silver alloy contacts
    Device Short Name
    9001K
    Operating Position
    any position
    Operator Profile
    80 mm long operating shaft
    Positive Opening
    without
    Product Or Component Type
    joystick controller
    Range Of Product
    Harmony 9001K
    Returnability
    Yes
    Shape Of Screw Head
    cross slotted
    Shock Resistance
    50 gn IEC 60068-2-27
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    2 kg CO2 eq.
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version
    2024-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
    Functional-unit Unit
    unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; High voltage; 2020; Mexico, MX
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2020; United States, US
    Recyclability Potential, In %
    49
    [Ui] Rated Insulation Voltage
    250 V 3)IEC 60947-1
    Connections - Terminals
    screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Certificate AgencyNEMA, UL 508
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.7 kg CO2 eq., 0.667854390154064
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.6590346099758588
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Compatibility Code9001K
    Contacts Type And Composition2 C/O
    Mounting Diameter30 mm
    Operator Direction Information4 directions
    Overvoltage CategoryII conforming to IEC 61140
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTC
    Returnto centre
    Sale Per Indivisible Quantity1
    Shape Of Signaling Unit Headoctagonal
    Software Versionv6.2.4
    Tightening Torque0.8-0.8 N.m IEC 60947-1
    Vibration Resistance7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Pep CodeENVPEP2503027EN
    Pep Verification Date2025-03-26
    Psr VersionPSR-0005-ed3-2023 06 06
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    [Ith] Conventional Free Air Thermal Current10 A
    [Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
    Short-circuit Protection10 A cartridge fuse IEC 60947-5-1
    Package Weight(Lbs)304.0 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP65/IP66
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    2.4935768692224487
    Environmental Disclosure
    ENVPEP2503027EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2025-03-26
    Psr Version
    PSR-0005-ed3-2023 06 06
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2503027EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2503027EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    joystick controller
    Range Of ProductHarmony 9001K

    ETIM

    ETIM 8
    EC000632
    ETIM 9EC000632

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product
