Killark

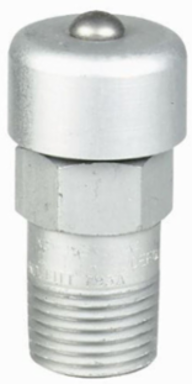

Killark KB1BCEN Aluminum Breather, 1/2 Inch NPT, Suitable for Explosionproof Environments

Aluminum Breather, 1/2 Inch NPT, Suitable for Explosionproof Environments
  • MPN: KB1BCEN
  • UPC: 783936012650
  • PPN: HBL-KB1BCEN
  • UNSPSC: 39121321

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$299.34/ EA

Description

The KB & KDB drain and breather are installed either the bottom top of an enclosure. When installed in the bottom they act as a gravity fed drain to expel moisture from condensation that can build up in electrical enclosures When installed in the top of an enclosure it acts a s a breather allowing air to enter and prevent a vacuum which can cause the drain not to flow properly. They are UL / cCSAus / FM certified for Class I Class I Zone 1 & 2 Class III, Type 4 & 4X. Also, ATEX, IEC Ex, Ex db IP66 with suffix “CEN”. Review each part for hazardous rating suitability and notified body. The KB & KDB are offered in aluminum, 300 series stainless steel and 316 stainless steel. Thread sizes ¼”to 1/2” NPT and Metric sizes M16 & M20.

Features

  • Suitable for Explosionproof and Dust-Ignitionproof environments.
  • Copper-free aluminum.
  • Light Blue Anodized Finish.
  • The breather has a 1/2" NPT thread size.

Specifications

Specifications

Country of Origin
United States
Hub Size
1/2"
Application
When installed in the top of an enclosure, these fittings act as breathers which allows air flow through the enclosure.
Special Features
The breather has a 1/2" NPT thread size.
Width
1.125 in
Class Code
D30
Freight Class Code
06316009
Image Actual Or Representative
R
MSDS Flag
No
Returnable Indicator
No
CSA File Number
LR11716
UL File Number
E10514
Series
KB Series
Carton - SCC-14 Next Lower Level Sub Pack
00783936012650
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length2 in
ColorSilver
TypeBreather
ARRA CompliantContact Manufacturer
Description - Invoice1/2"NPT BREATHER GRP B ATEX IEC EX
Harmonization Code7616995190
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging0.25
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach

Certifications

EU RoHS Indicator
Contact Manufacturer
