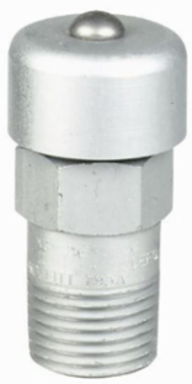

Killark KB1B Aluminum Breather with 1/2 Inch NPT Thread Size, UL Certified for Hazardous Locations
- MPN: KB1B
- UPC: 783936381602
- PPN: HBL-KB1B
- UNSPSC: 39121321
CAD
$178.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The KB & KDB drain and breather are installed either the bottom top of an enclosure. When installed in the bottom they act as a gravity fed drain to expel moisture from condensation that can build up in electrical enclosures When installed in the top of an enclosure it acts a s a breather allowing air to enter and prevent a vacuum which can cause the drain not to flow properly. They are UL / cCSAus / FM certified for Class I Class I Zone 1 & 2 Class III, Type 4 & 4X. Also, ATEX, IEC Ex, Ex db IP66 with suffix “CEN”. Review each part for hazardous rating suitability and notified body. The KB & KDB are offered in aluminum, 300 series stainless steel and 316 stainless steel. Thread sizes ¼”to 1/2” NPT and Metric sizes M16 & M20.
Features
- Suitable for Explosionproof and Dust-Ignitionproof environments.
- Copper-free aluminum.
- Light Blue Anodized Finish.
- The breather has a 1/2" NPT thread size.
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 1/2"
- Application
- When installed in the top of an enclosure, these fittings act as breathers which allows air flow through the enclosure.
- Special Features
- The breather has a 1/2" NPT thread size.
- Width
- 1.125 in
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- KB Series
- BOX SIZE
- 5.562x5.562x4.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936381602
- Item Package Type
- K-PAK
- NAICS Code
- 3359326103
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length2 in
ColorSilver
TypeBreather
ARRA CompliantContact Manufacturer
Description - Invoice1/2" GRP. B BREATHER
Harmonization Code7616995190
Lead Time25 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging0.5
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
