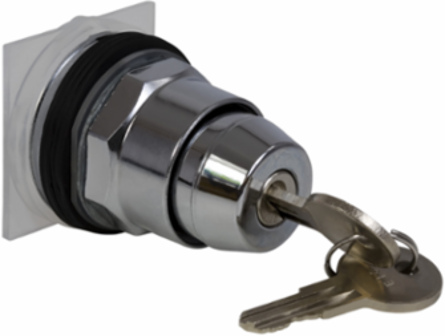

Electric 9001KS12K Harmony Key Selector Switch Head, 30 mm, Metal, Key E10, 2 Positions
Square D

Square D 9001KS12K1 Electric 9001KS12K Harmony Key Selector Switch Head, 30 mm, Metal, Key E10, 2 Positions

  • MPN: 9001KS12K1
  • UPC: 785901849780
  • PPN: SCH-9001KS12K1

CAD

$178.12

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This selector switch is operated by rotating the key operated knob." "It is a 2-position maintained operator selector switch with dust and oil resistant, weatherproof enclosure." "It offers left key withdrawal position and 1 projecting pushbutton profile." "It is a NEMA 1/2/3/3R/4/6/12/13 rated product." "This type K selector switch is fitted with chromium plated metal bezel and black key operated knob." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE." "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."

Documentation & Downloads

Specifications

Key Specifications

Range Of Product
Harmony 9001K
Mounting Diameter
30 mm
Device Short Name
K
Enclosure Typedust and oil resistant weatherproof enclosure indoor/outdoor
Product Or Component Typehead for key selector switch

Complementary

Key Withdrawal Position
left
Key Number
E10
Operator Position Information
2 positions
Type Of Operator
stay put
Type Of Operator
maintained
Operator Profile
1 projecting push-button
Contacts Type And Compositionwithout contact block
Bezel Materialmetal
Operator Profilekey switch
Cap/Operator Or Lens Colourblack
Size30 mm

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121006EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Environment

Product Certifications
CE || CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
