Schneider Electric 9001KS11K1 Harmony 9001K Key Selector Switch, 30mm, E10 Key, IP66

MPN: 9001KS11K1
UPC: 785901913610
PPN: SCH-9001KS11K1
UNSPSC: 39122217

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$178.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

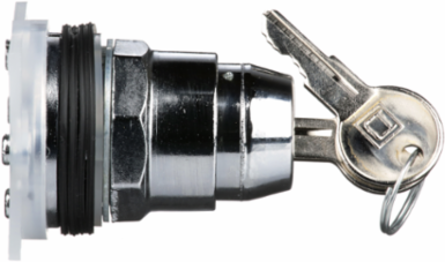

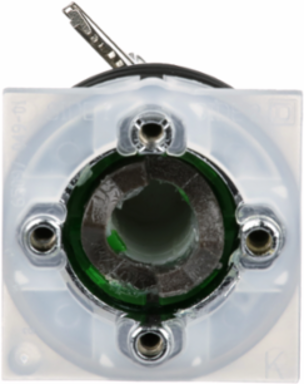

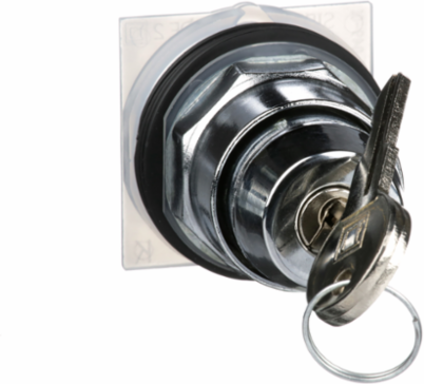

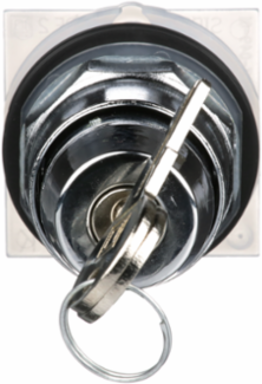

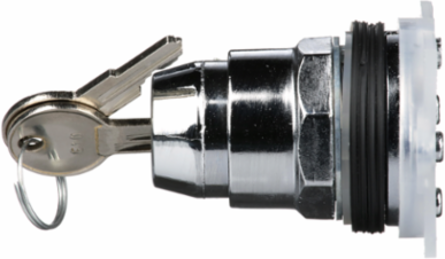

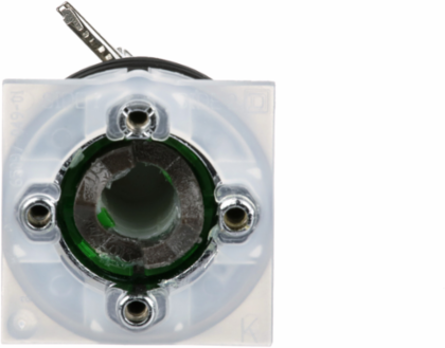

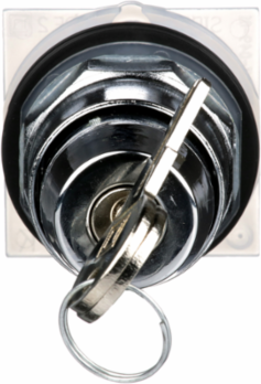

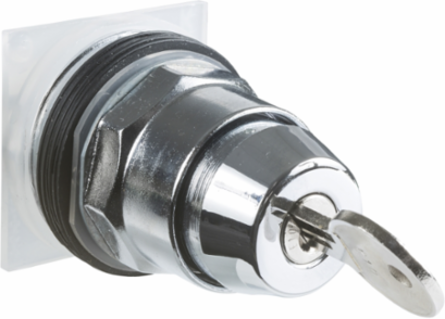

Harmony 9001K Key Selector Switch, 30mm, E10 Key, IP66

Features

his 2-position Harmony 9001K selector switch utilizes a high-security E10 mechanical key lock system to restrict critical machine configurations exclusively to trained staff. Perfect for isolating hazardous processing zones, conveyor master controls, or overhead hoists, it provides plant managers with a foolproof physical security boundary that prevents accidental startups or unauthorized parameter modifications.
Engineered with a true 30 mm (1.18-inch) diameter panel cutout profile, this industrial operator seamlessly integrates into standard heavy-duty push button enclosures without specialized drilling. The standardized design allows automation contractors and panel builders to rapidly retrofit older legacy control configurations or deploy new, robust command boards while saving critical installation labor.
uilt with an ultra-reliable, 2-position maintained (stay-put) mechanical action featuring a left-to-right throw, this switch securely holds its selected state until it is physically turned back. It eliminates the risk of control loops dropping out due to momentary contact loss, providing a continuous, rock-solid mode selection pathway for managing automatic vs. manual system configurations.
This specialized K1 profile operator is designed with a strict left-position key withdrawal restriction, meaning the physical E10 key can only be pulled out of the lock cylinder when turned to the left position. This provides supervisors with an absolute visual and physical lockout mechanism, ensuring that the system cannot be left running unattended in the right-position operational mode without a key present.
Boasting comprehensive IP66 ingress ratings along with NEMA 1, 2, 3, 3R, 4, 12, and 13 certifications, this switch provides total oil-tight, dust-tight, and water-proof sealing without needing external rubber boots. It completely blocks airborne particulates, high-pressure hose spray, splashing water, and corrosive coolants from reaching your interior electronics guaranteeing flawless operation during intense daily sanitation procedures.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Weight	226.796 g

Physical Attributes

Size	30 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL 508, NEMA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.5 kg CO2 eq., 0.4982457377282273
Carbon Footprint Of The Manufacturing Phase A1 To A3	1 kg CO2 eq., 1.237705307250279
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Cam Profile	5
Contacts Type And Composition	without contact block
Key Number	E10
Mechanical Durability	0.5 Mcycles
Operator Position Information	2 positions
Overvoltage Category	class II conforming to IEC 61140
Product Or Component Type	head for key selector switch
Range Of Product	Harmony 9001K
Shape Of Signaling Unit Head	octagonal
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	2 kg CO2 eq.
Type Of Operator	stay put
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Customs Code	8538908180
Functional Unit Description	This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
Functional Unit Unit	unit
Recyclability Potential In %	49

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	0.12268199827445428, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0016737318528761275, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-03-25
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Bezel Material	metal
Compatibility Code	9001KS
Device Short Name	9001K
Key Withdrawal Position	left
Mounting Diameter	30 mm
Operator Profile	key switch
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Returnability	Yes
Shock Resistance	50 gn IEC 60068-2-27
Sustainable Packaging	Yes
Type Of Keylock	E10
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Database Version	2024-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP65/IP66
Product Compatibility	9001KA1 side 1 or 2, 9001KA2 side 1 or 2
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
Take Back	No
China Rohs Regulation	X
Carbon Footprint	1.8603067751058366
Environmental Disclosure	ENVPEP2503027EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-03-26
Psr Version	PSR-0005-ed3-2023 06 06
