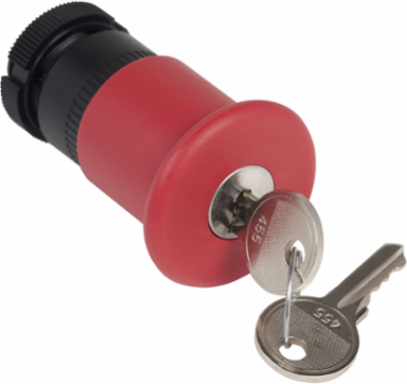

Schneider Electric ZA2BS944 Harmony XAC Emergency Stop Head, Red Mushroom 40mm, IK08 Rating

MPN: ZA2BS944
PPN: SCH-ZA2BS944
UNSPSC: 39122216

$138.05

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony ZA2BS944 is a red diameter 40mm Emergency stop, switching off head trigger and latching key release. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Features

It is easily installed and replaced on compatible complete push-button units
It can operation in harsh environments
It is clearly distinguishable visually at a distance thanks to its clear color
Wide availability throughout an extensive distribution network

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	73 g

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL 508, CSA C22.2 No 14, IEC 60947-5-5, IEC 60947-5-1, IEC 60204-32, IEC 62262
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.0365468905
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.9 kg CO2 eq., 0.8632649635
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308018EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Marking	unmarked
Operator Profile	red mushroom Ø 40 mm
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony XAC
Sale Per Indivisible Quantity	1
Sustainable Packaging	No
Vibration Resistance	15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Data Source	extrapolated product
Customs Code	8538908160
Functional Unit Description	The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.015W with 70% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional Unit Unit	Unit
Recyclability Potential In %	80

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	0.0095459489, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0002253942, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-02-26
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Mounting Location	front of enclosure
Overvoltage Category	class II conforming to IEC 61140
Product Or Component Type	head for emergency switching off push-button
Returnability	Yes
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.9 kg CO2 eq.
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.9095831971
Environmental Disclosure	ENVPEP2308018EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	XACA..
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-01-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2308018EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2308018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
