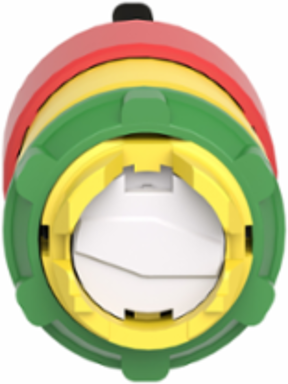

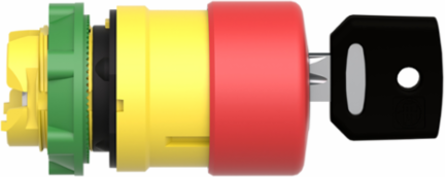

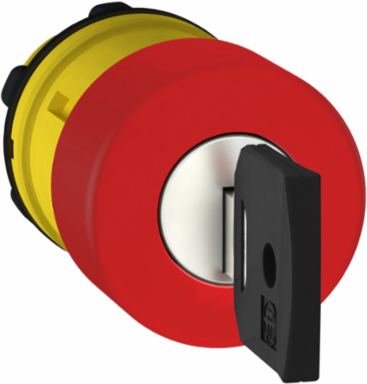

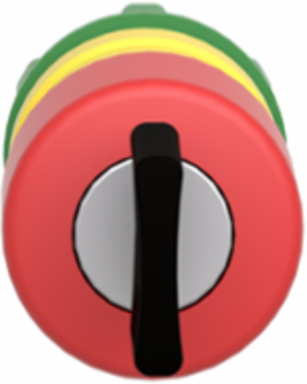

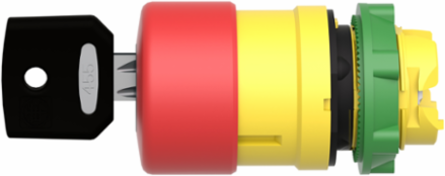

Schneider Electric ZB5AS934 Harmony XB5 Emergency Stop Head, 30mm Red Mushroom, IP66

MPN: ZB5AS934
PPN: SCH-ZB5AS934
UNSPSC: 39122216

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$132.57

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XB5 emergency stop / shutdown 30mm mushroom red button head operates with a latched key release (key no.455) mechanism. It provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off push buttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 30mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Features

Wide modular range to suit machines and operator safety.
Designed to fit in a 22mm cut-out or Harmony XAPK control station ensuring compatibility with pre-existing machinery.
Illuminated types to improve operator efficiency by reducing production downtime.
Ergonomic design for emergency actuation in several environments
Large set of accessories : circular legends, illuminated legend rings for harsh environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Weight	66 g

Physical Attributes

Cad Overall Depth	79 mm
Cad Overall Width	30 mm

Cad Overall Height	30 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	0, no
Operator Profile	red mushroom Ø 30 mm, unmarked, mushroom Ø 30 mm
Operator Profile 1 Cap Operator Or Lens Color	red
Certificate Agency	CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.1099168242
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.5 kg CO2 eq., 0.5039793172
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308012EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	60 %
Bezel Material	dark grey plastic
Device Short Name	ZB5
Head Type	standard
Main Group	E-stop
Mechanical Durability	300000 cycles
Overvoltage Category	class II conforming to IEC 60536
Product Destination	emergency stop push-button
Protective Treatment	TH
Reset	key release
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.6 kg CO2 eq.
Type Of Operator	trigger action and mechanical latching
Keylock Type	key 455
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Reference Lifetime In Y	10

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Composition Code	C7 4 single front mountingC8 4 single and double front mountingC11 3 single front mountingC15 1 single front mounting, SF1 3 single front mountingSR1 3 single rear mounting, C10 4 single and double front mounting
Station Name	XALD 1...5 cut-outs, XALK 1...5 cut-outs
Operator Profile 1 Operator Profile	mushroom Ø 30 mm
Carbon Footprint Of The Distribution Phase A4	0.0086307128, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0161635049, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-08-10
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	7 %
Compatibility Code	ZB5
Group Of Product	emergency stop key release
Key Withdrawal Position	center
Marking	unmarked
Mounting Diameter	22 mm
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	head for emergency stop push-button
Range Of Product	Harmony XB5
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	No
Type Of Keylock	key 455
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Database Version	2022-01
Cap/Operator Or Lens Colour	red
Customs Code	8538908160
Functional Unit Description	Emergency stop modular red push button operates with a latched key release mechanism and uses screw-clamp terminals. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It has energy consumption of 0.002 W at use rate of 71% during 10 years. Product meets the international standards such as EN/IEC 60947-1 and EN/IEC 60204 -1.
